Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

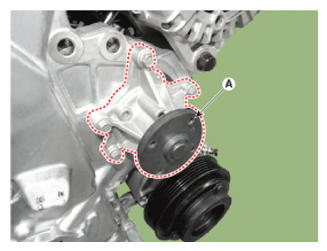

- Install the new gasket and water pump (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

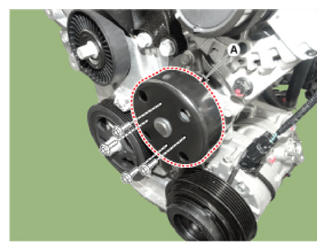

- Install the water pump pulley (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
NOTE:- Tighten the bolts diagonally when installing.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")
- Fill with engine coolant.
- Start engine and check for leaks.
- Recheck engine coolant level.
