Removal And Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the drain plug and drain the coolant and remove the radiator cap to speed draining.
(Refer to Cooling System - "COOLANT ")

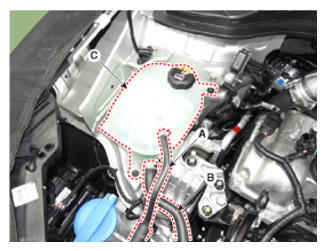

- Disconnect the over flow hose (A) and cooling hose (B).
- Remove the reservoir tank (C).
Tightening Torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)
- Install in the reverse order of removal.
