Removal And Installation

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the drain plug, and drain the coolant and remove the radiator cap to speed draining.
(Refer to Cooling System - "COOLANT ")
Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")

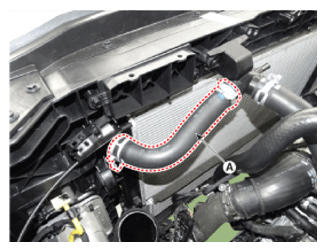

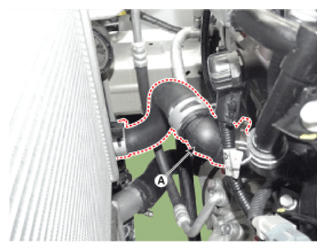

Remove the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

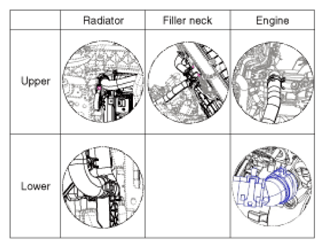

Install the radiator hoses as displayed images.

Courtesy of HYUNDAI MOTOR AMERICA

Remove the radiator lower hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Install the radiator hoses as displayed images.

Courtesy of HYUNDAI MOTOR AMERICA

Remove the front bumper.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

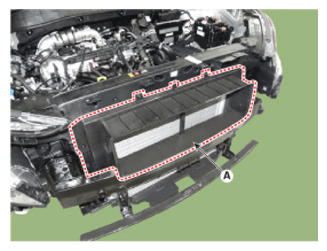

Remove the radiator air guard (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the intercooler.
(Refer to Intake and Exhaust System - "INTERCOOLER ")

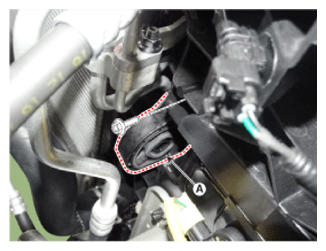

Remove the radiator upper bracket bolts (A).
Tightening Torque:

7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

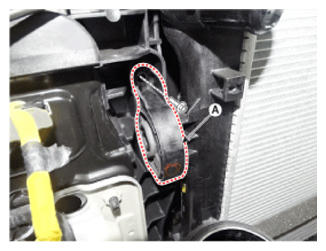

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

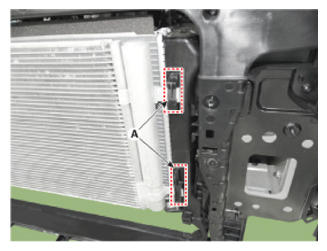

Disconnect the condenser (A) from radiator.
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

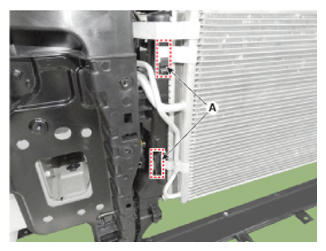

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

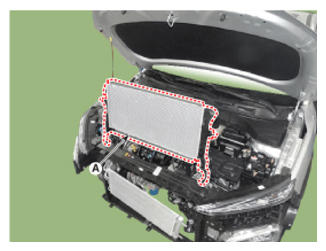

Pull the radiator (A) upward and remove it from engine room.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to cooling system - "COOLANT ")
Run engine and check for leaks.
Recheck engine coolant level.
