Cooling Fan Controller (PWM)
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

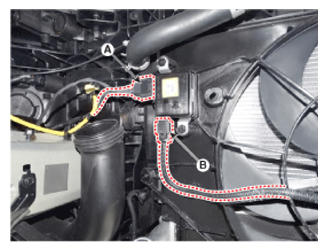

- Disconnect the wiring harness connector (A) and the fan motor connector (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|

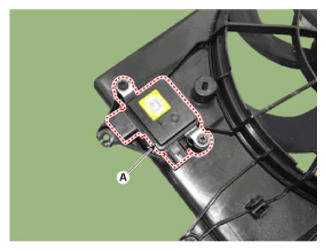

- Remove the cooling fan controller (PWM) (A) from the cooling fan shroud.
Tightening Torque:
4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 Ib-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
