Cooling Fan Assembly
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal from the battery.
- Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

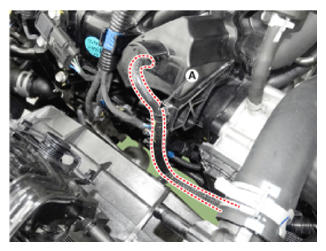

- Disconnect the overflow hose and pipe (A).

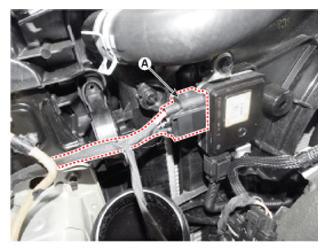

- Disconnect the wiring harness connector (A).

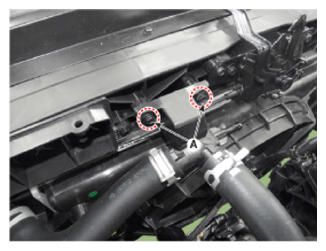

- Remove the filler neck assembly mounting bolts (A).
Tightening Torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

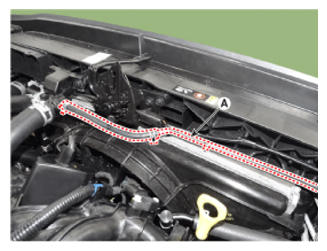

- Disconnect the RCV solenoid hose (A).
- Remove the Hood Latch.
(Refer to Body (Interior and Exterior) - "HOOD ")

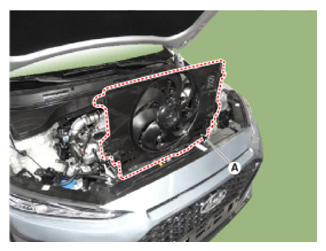

- Loosen the mounting bolts and then remove the cooling fan (A).
Tightening Torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 Ib-ft)
- Install in the reverse order of removal.
