Repair Procedures: Disassembly
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

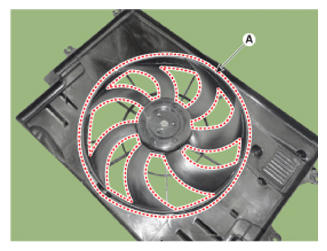

- Remove the cooling fan (A) from the cooling fan assembly.
Tightening Torque:
2.7 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.0 - 2.4 Ib-ft)

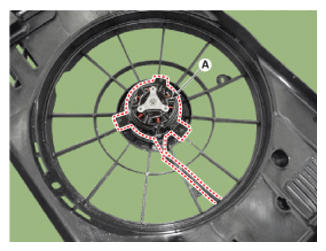

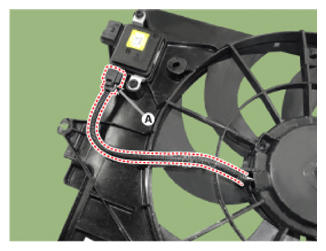

- Disconnect the fan motor connector (A) from the cooling fan controller (PWM).
- Loosen the screws and then remove the fan motor (B) from the cooling fan shroud.
Tightening Torque:
3.9 - 5.7 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)
- Install in the reverse order of removal.
