Transaxle Mounting Bracket

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air duct and air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  2. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the ECM.

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  4. Remove the battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine room under cover.

    (Refer to Engine Room Under Cover - "ENGINE ROOM UNDER COVER ")

  6. Install the jack to the edge of transaxle.

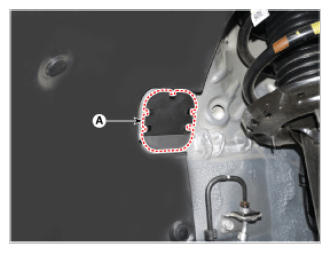

  7. Remove the service cover (A).
    G12593015Courtesy of HYUNDAI MOTOR AMERICA

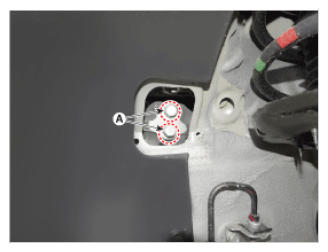

  8. Remove the transaxle mounting bolts (A).

    Tightening Torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

    G12593016Courtesy of HYUNDAI MOTOR AMERICA

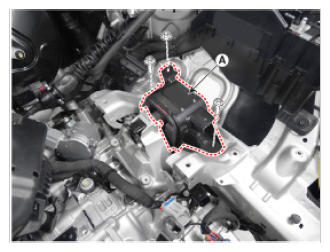

  9. Remove the transaxle mounting bracket (A).

    Tightening Torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G12593017Courtesy of HYUNDAI MOTOR AMERICA
  10. Install in the reverse order of removal.
