Engine Mounting Support Bracket

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

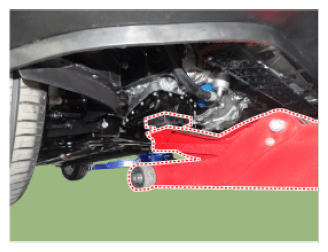

Install the jack to the edge of upper oil pan to support the engine.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Insert the rubber block between jack and oil pan.

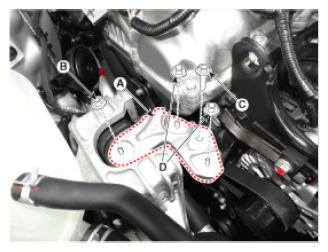

Remove the engine mounting support bracket (A).
Tightening Torque

Nut (B):

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Bolt (C), Nut (D):

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the reservoir tank.
(Refer to Cooling System - "RESERVOIR TANK ")

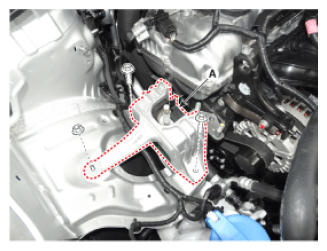

Remove the engine mounting bracket (A).
Tightening Torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
