Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

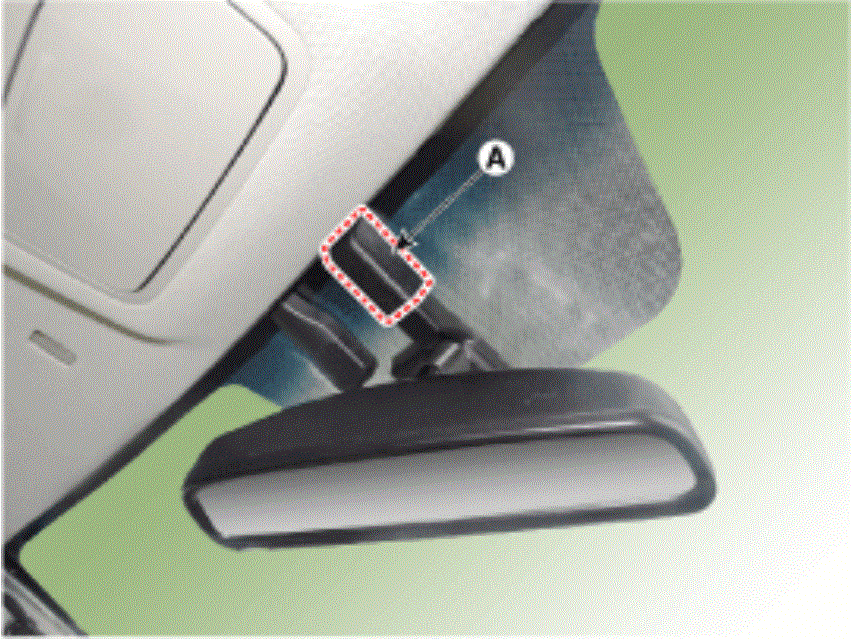

  1. Remove the mirror wiring cover (A).
    G00583524Courtesy of HYUNDAI MOTOR AMERICA

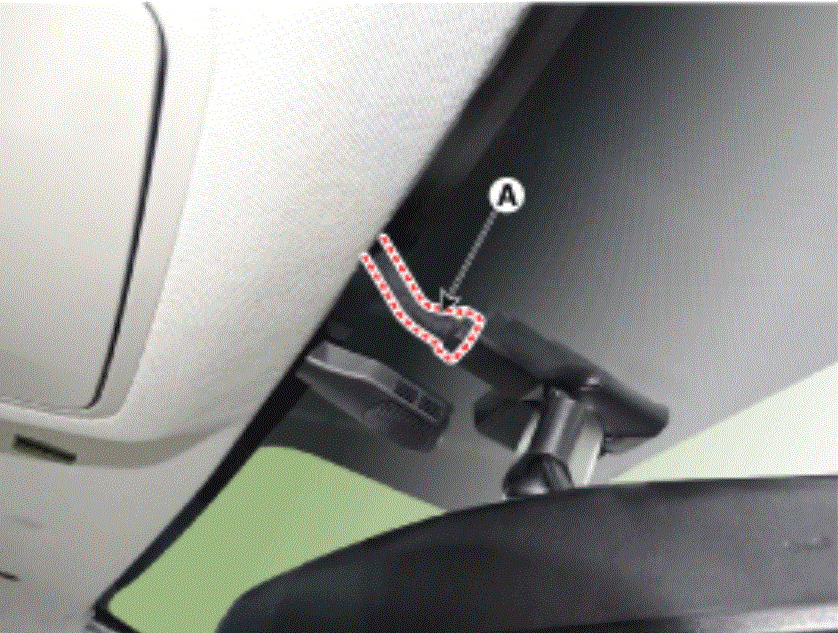

  2. Remove the mirror connector (A).
    G00583525Courtesy of HYUNDAI MOTOR AMERICA

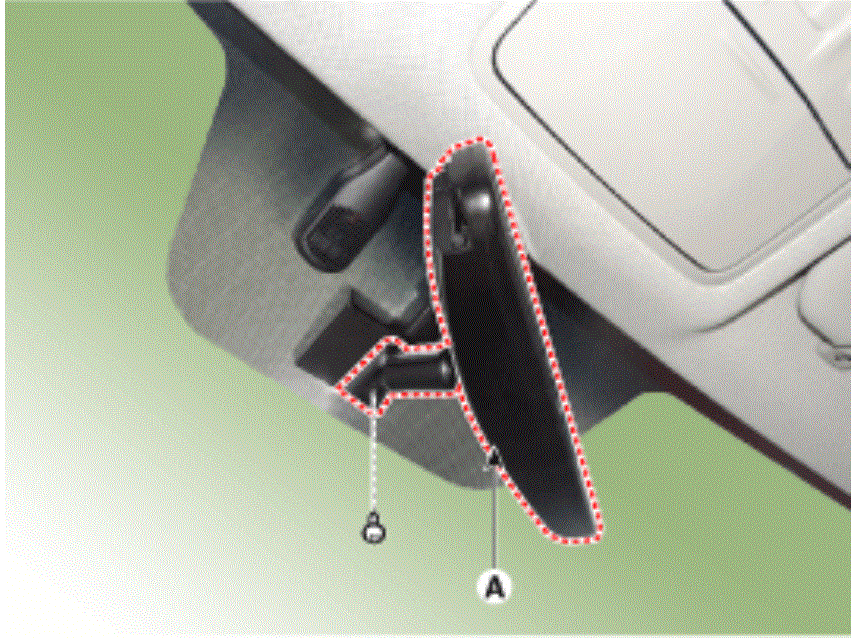

  3. Remove the mirror (A) pulling up in the arrow direction.
    NOTE: Take care not to damage the mounting bracket during removal.
    G00583526Courtesy of HYUNDAI MOTOR AMERICA
