Brake Caliper Piston

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use a new caliper piston boot and seal whenever installing.

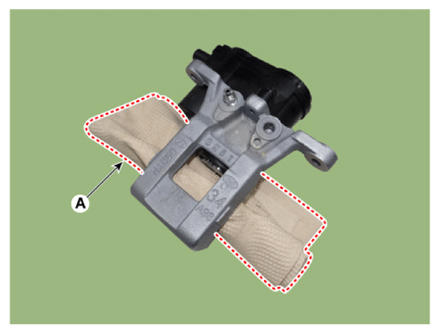

Place a piece of cloth (A) between the piston and caliper body.

Courtesy of KIA MOTORS AMERICA, INC.

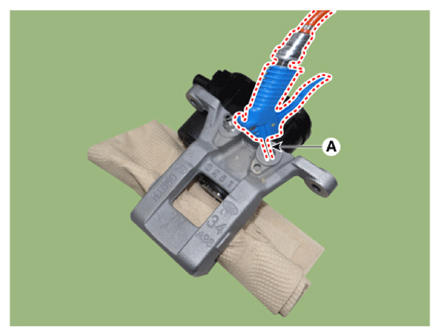

Slowly inject compressed air (A) into the caliper cylinder and push the piston out.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Do not place your fingers in front of the piston when using compressed air.
Remove the caliper piston (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the caliper piston or cylinder.

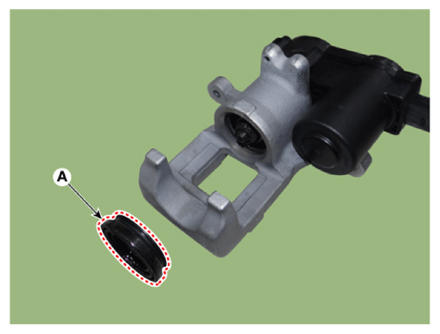

Remove the caliper piston boot (A).

Courtesy of KIA MOTORS AMERICA, INC.

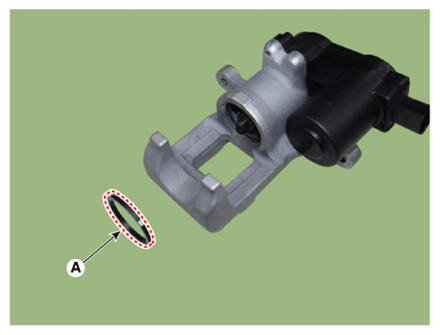

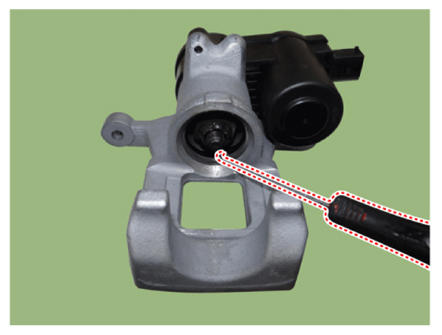

Using a screwdriver or remover, remove the piston seal (A) from the caliper cylinder.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the inner surface or piston seal groove of the cylinder.

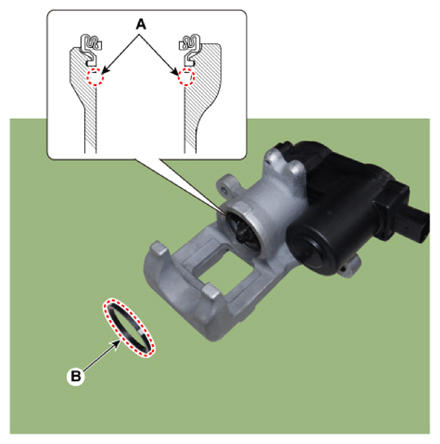

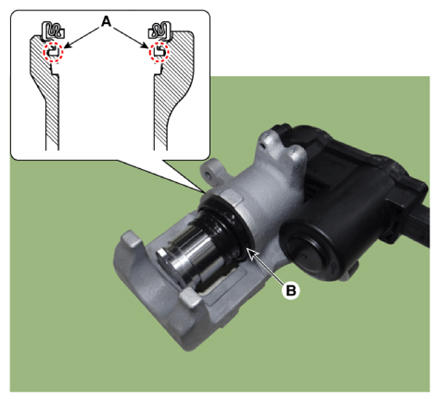

Install the piston seal (B) into the cylinder seal groove (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Use a new caliper piston seal whenever installing.
- Apply assembly oil to the piston seal.
- Take care not to get any foreign matter into the cylinder.

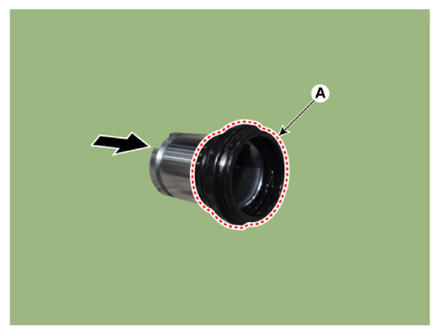

Insert the piston boot (A) in the direction of the arrow and position the boot at the end of piston.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Use a new caliper piston boot whenever installing.
- Apply assembly oil to the piston surface.
- Be careful not to change the direction of the boot.
- Be careful not to damage the boot.

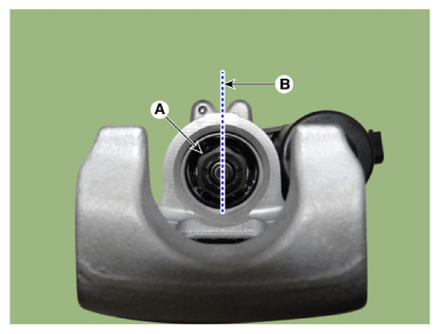

Turn the spindle nut (A) clockwise and push it in fully. Check the position of the spindle (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install the piston boot (A) into the cylinder boot groove (B).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Take care not to get any foreign matter into the cylinder.

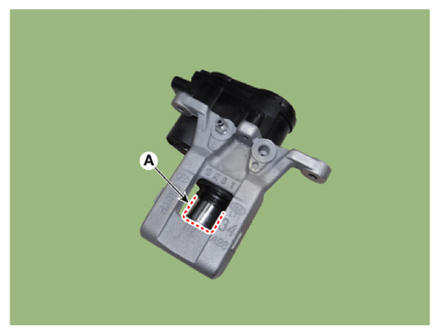

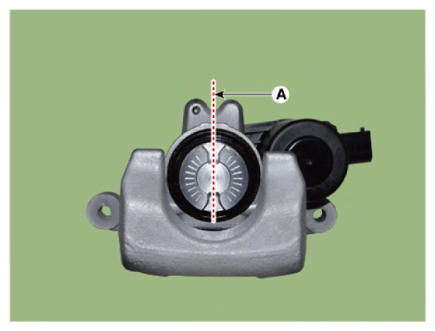

Check the position of the piston groove (A) and insert it into the cylinder.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to tilt the piston when inserting the piston.
- Do not apply excessive force when inserting the piston.
- Rotate the piston slowly to prevent damage to the piston boot.

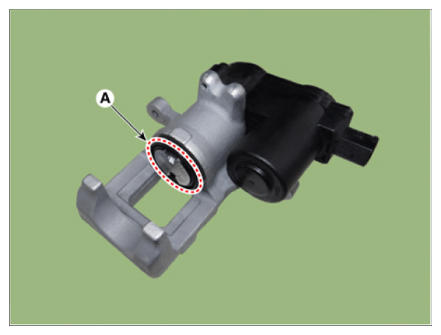

Make sure that the caliper piston boot (A) is correctly installed.

Courtesy of KIA MOTORS AMERICA, INC.
Install the brake caliper assembly.
After installation, bleed the brake system.
(Refer to Brake system - "BRAKE BLEEDING PROCEDURES ")
Check and clean any spilled brake fluid.
