Brake Pad Check
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

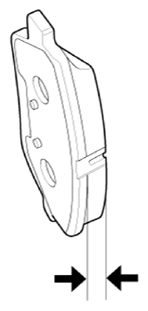

- Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.
Front disc brake pad thickness
- Standard (15 inch disc): 11.0 mm (0.4331 in.)
- Standard (16 inch disc): 11.5 mm (0.4527 in.)
- Service Limit: 2.0 mm (0.0787 in)
Rear
- Standard (With EPB): 10.0 mm (0.3937 in.)
- Standard (Without EPB): 9.0 mm (0.3543 in.)
- Service Limit: 2.0 mm (0.0787 in)
- Check that grease is applied to sliding contact points and check the pad and backing metal for damage.
