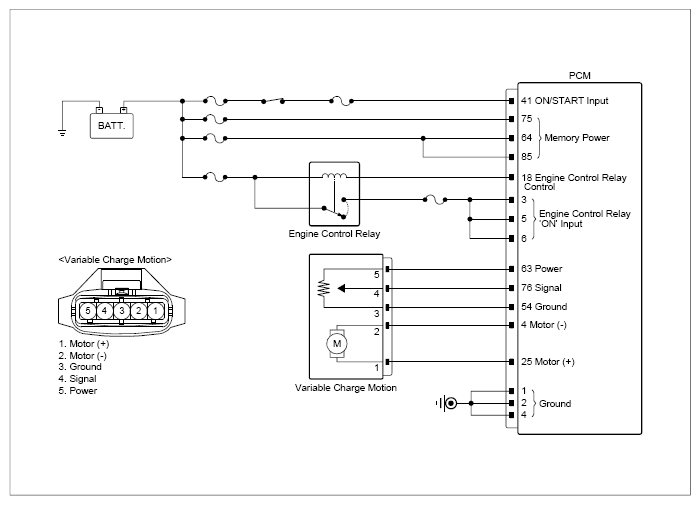

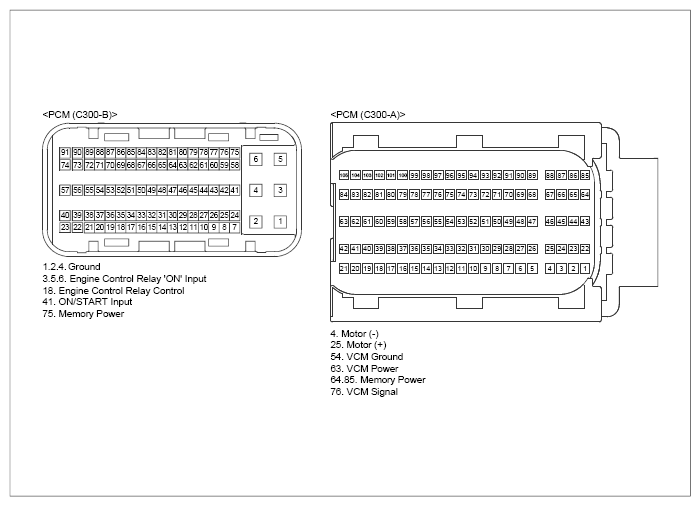

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
VCMA connector | 1 (motor +) | Chassis ground | - | Approx. 12V |
| VCMA connector | 2 (motor -) | Chassis ground | - | Approx. 11.7V | |
| VCMA connector | 3 (ground) | Chassis ground | - | 0V | |
| VCMA connector | 4 (signal) | Chassis ground | - | Approx. 4.8V | |
| VCMA connector | 5 (power) | Chassis ground | - | Approx. 5V | |
|
VCMA connector | 1 (motor +) | Chassis ground | - | ∞ (infinity)Ω |
| VCMA connector | 2 (motor -) | Chassis ground | - | ∞ (infinity)Ω | |
| VCMA connector | 3 (ground) | ECM/PCM connector | 54 (ground) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
