Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

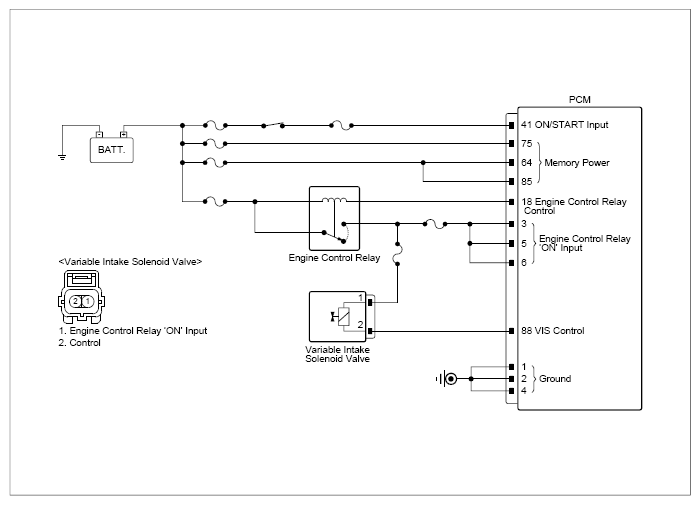

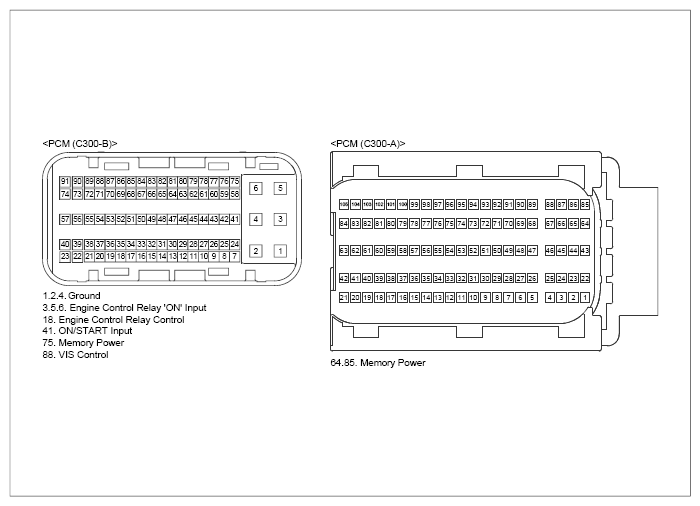

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
VIS connector | 1 (power) | Chassis ground | - | Approx. 12V |
|
VIS connector | 2 (control) | Chassis ground | - | Approx. 2.5V |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
