Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

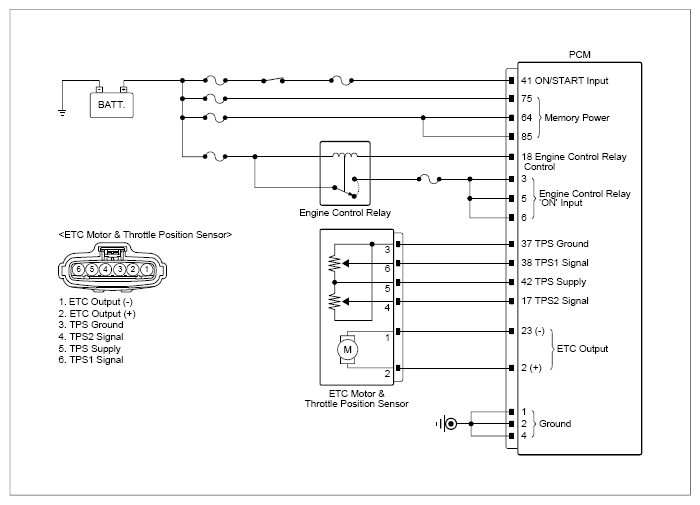

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ETC motor & TPS connector | 2 (motor +) | Chassis ground | - | ∞ (infinity)Ω |
| ETC motor & TPS connector | 2 (motor +) | Battery (+) terminal | - | ∞ (infinity)Ω | |
|

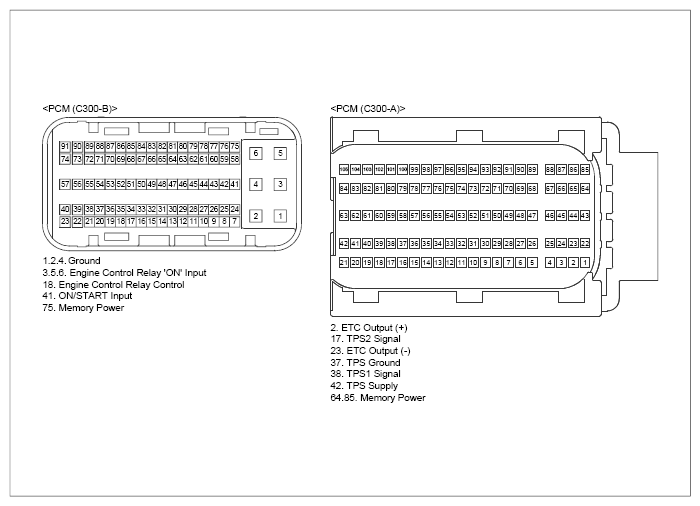

ETC motor & TPS connector | 2 (motor +) | ECM/PCM connector | 2 (motor +) | Approx. below 1Ω |
|
ETC motor & TPS connector | 1 (motor -) | Chassis ground | - | ∞ (infinity)Ω |
| ETC motor & TPS connector | 1 (motor -) | Battery (+) terminal | - | ∞ (infinity)Ω | |
|
ETC motor & TPS connector | 1 (motor -) | ECM/PCM connector | 23 (motor -) | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
