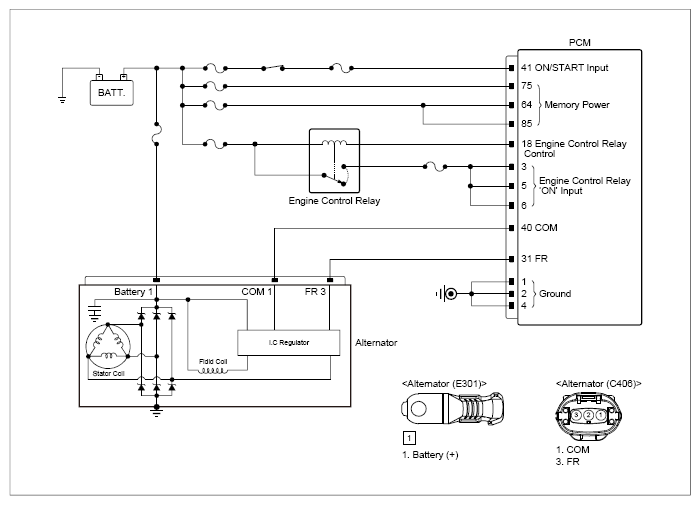

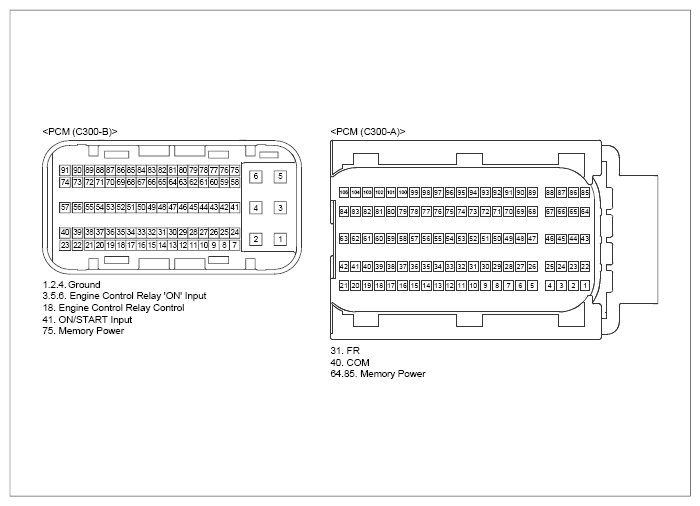

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Alternator connector | 3 (FR) | Chassis ground | - | Approx. 11.5V |
| Alternator connector | 2 (L) | Chassis ground | - | Approx. 11.2V | |
| Alternator connector | 1 (COM) | Chassis ground | - | Approx. 7.8V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
