Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

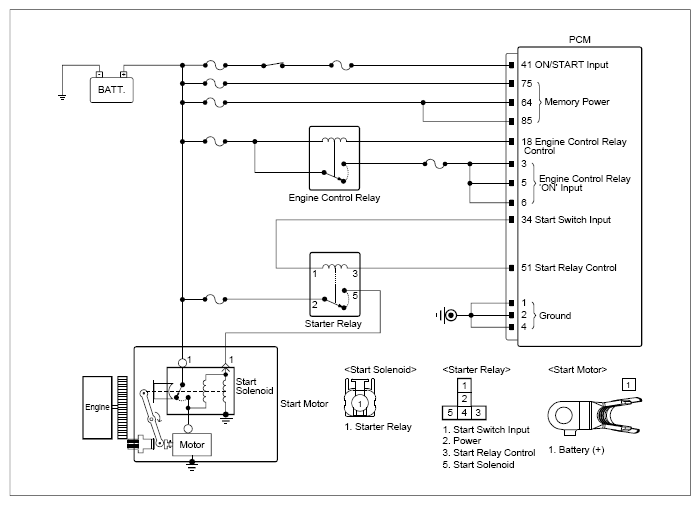

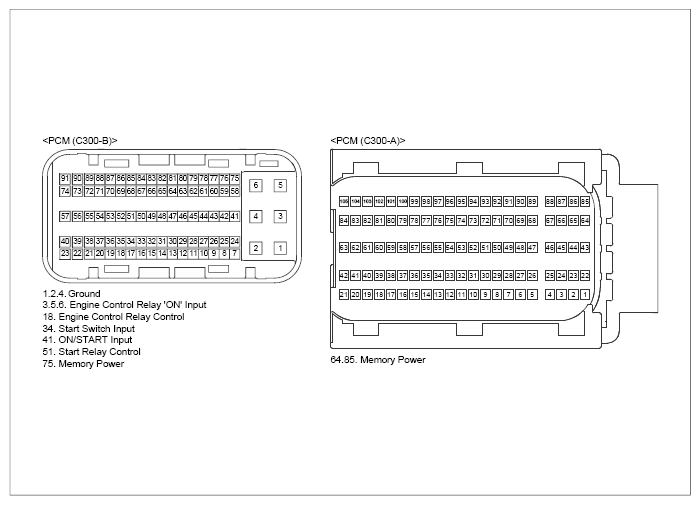

ECM/PCM connector | 34 (start switch input) | Chassis ground | - | ∞ (infinity)Ω |
| ECM/PCM connector | 34 (start switch input) | Chassis ground | - | ∞ (infinity)Ω | |
|
Start relay connector | 3 (start switch input) | ECM/PCM connector | 34 (start switch input) | Approx. below 1Ω |
| Start relay connector | 5 (start relay control) | ECM/PCM connector | 51 (start relay control) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
