Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

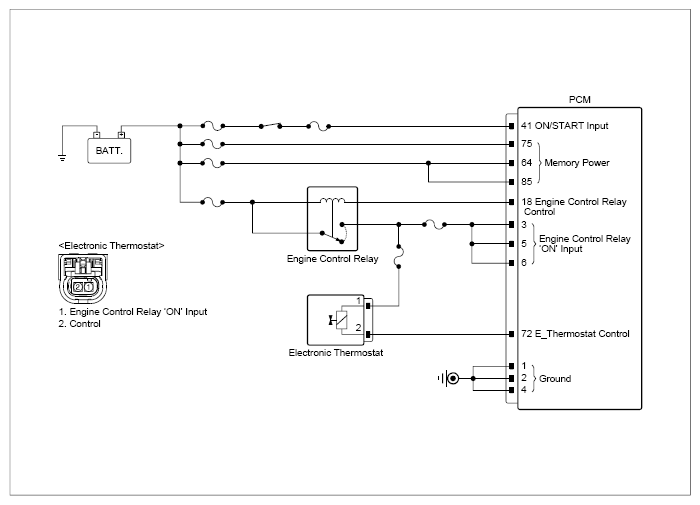

G13506800Courtesy of KIA MOTORS AMERICA, INC.

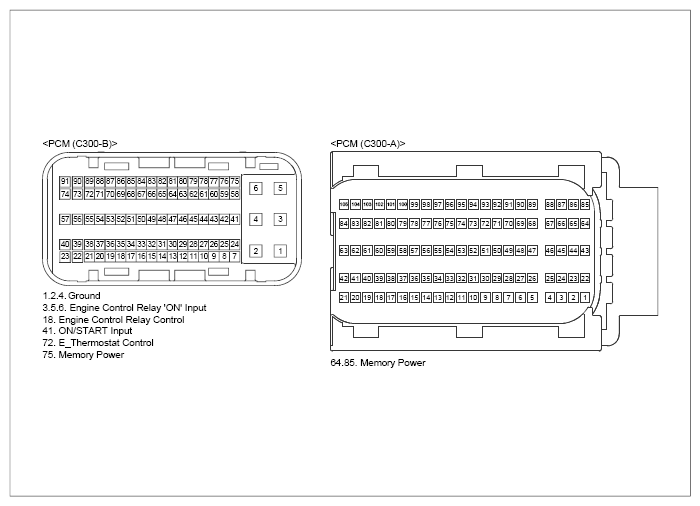

G13506801Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 Thermostat connector 1 (power) Chassis ground - B+
Thermostat connector 2 (control) Chassis ground - Approx. 0.87V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 Thermostat connector 2 (control) Chassis ground - ∞ (infinity)Ω

Good

No Good
