Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

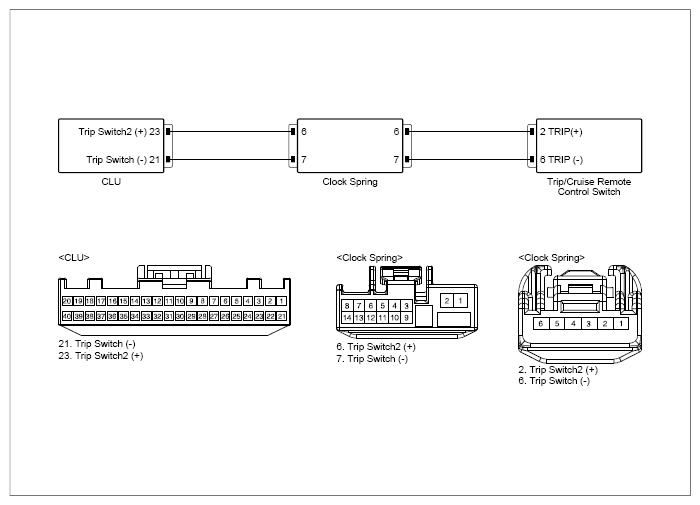

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Cruise Remote Switch connector | 2 (TRIP +) | Chassis ground | - | Approx. 0V |
| Cruise Remote Switch connector | 6 (TRIP -) | Chassis ground | - | Approx. 0V | |
|
Cruise Remote Switch connector | 2 (TRIP +) | Cluster connector | 23 (TRIP switch2) | Approx. below 1Ω |
| Cruise Remote Switch connector | 6 (TRIP -) | Cluster connector | 21 (TRIP switch -) | Approx. below 1Ω | |
| Cruise Remote Switch connector | 2 (TRIP +) | Chassis ground | - | ∞ (infinity)Ω | |
| Cruise Remote Switch connector | 6 (TRIP -) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
