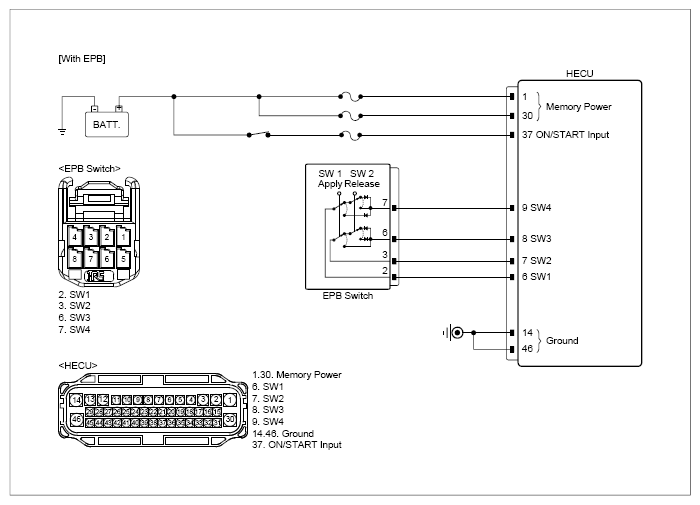

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

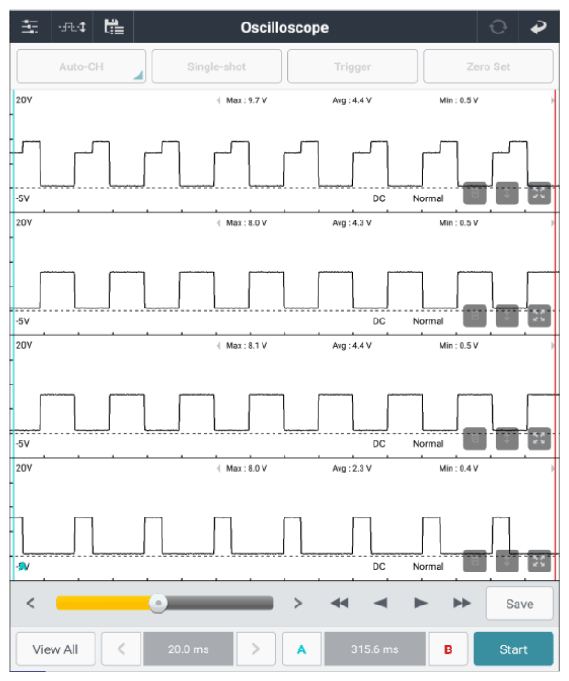

EPB switch connector | 2 (SW1) | EPB switch connector | 3 (SW2) | Fig.1 |
| EPB switch connector | 6 (SW3) | EPB switch connector | 7 (SW4) | ||
|

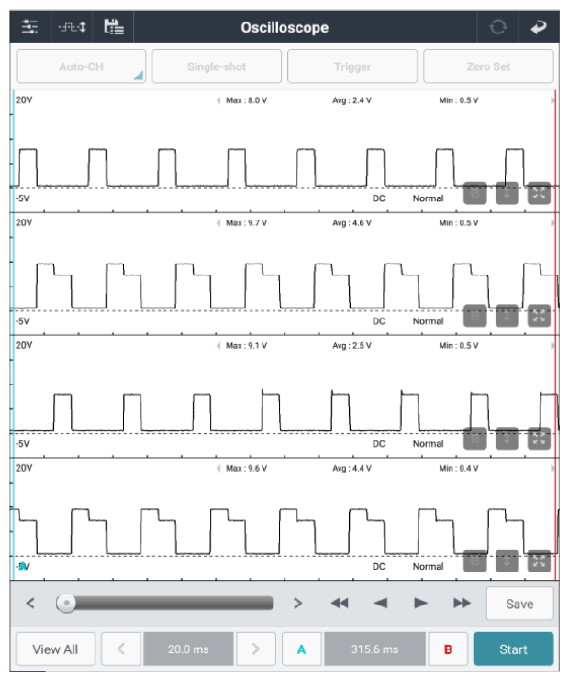

EPB switch connector | 2 (SW1) | EPB switch connector | 3 (SW2) | Fig.2 |
| EPB switch connector | 6 (SW3) | EPB switch connector | 7 (SW4) | ||
|
EPB switch connector | 2 (SW1) | EPB switch connector | 3 (SW2) | Fig.3 |
| EPB switch connector | 6 (SW3) | EPB switch connector | 7 (SW4) | ||
|
EPB switch connector | 2 (SW1) | HECU connector | 6 (SW1) | Approx. below 1Ω |
| EPB switch connector | 3 (SW2) | HECU connector | 7 (SW2) | Approx. below 1Ω | |
| EPB switch connector | 6 (SW3) | HECU connector | 8 (SW3) | Approx. below 1Ω | |
| EPB switch connector | 7 (SW4) | HECU connector | 9 (SW4) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
