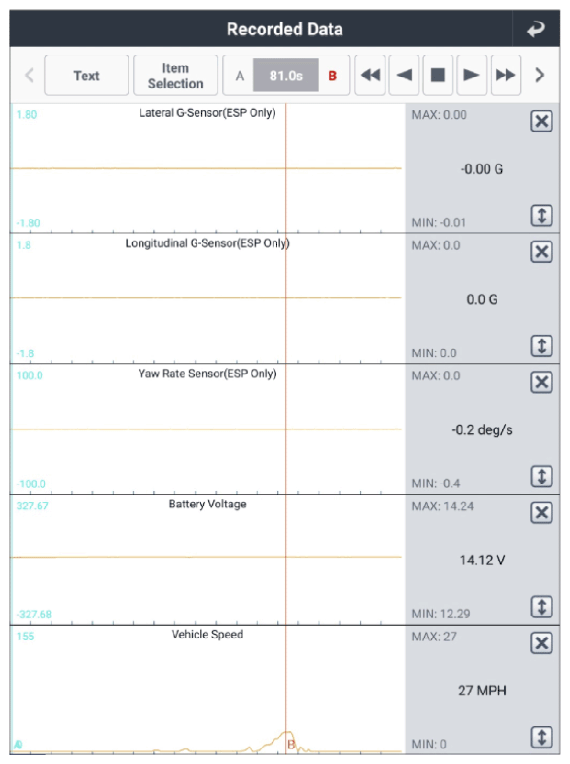

Monitor KDS Data
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Fig.1 |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "COMPONENT INSPECTION " procedure.
