Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

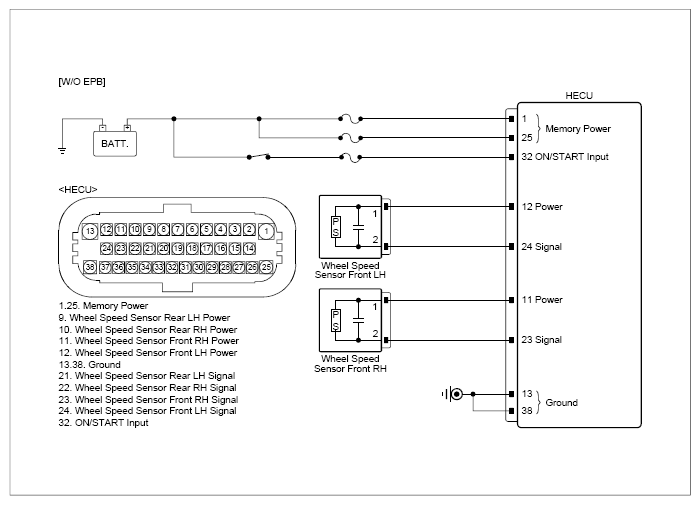

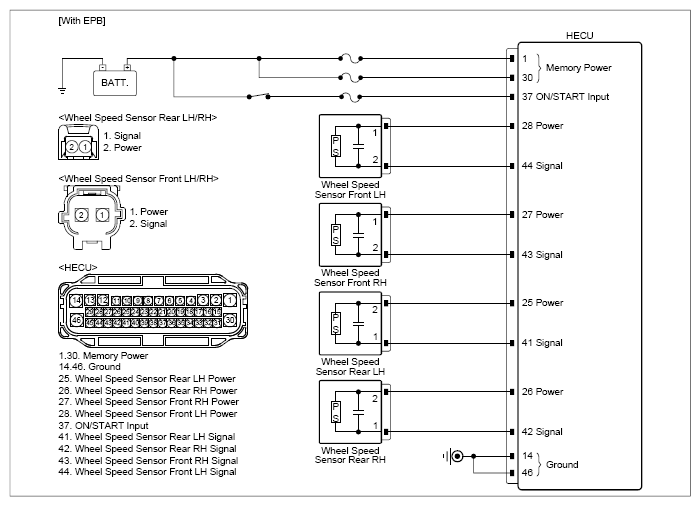

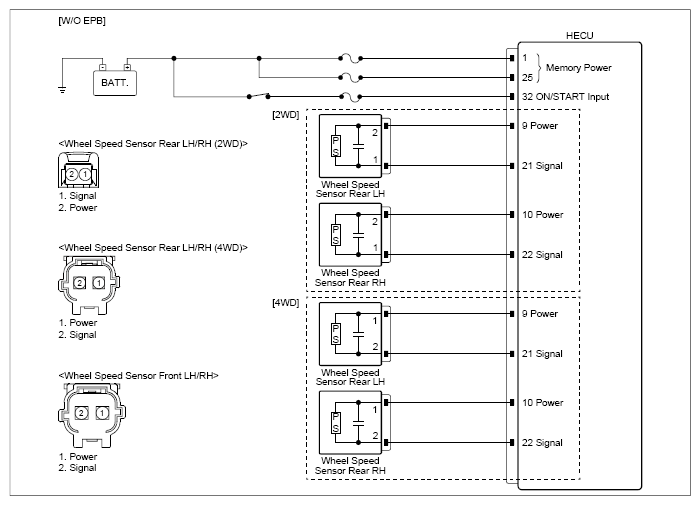

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
WSS RL connector (W/O EPB, 2WD) | 1 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| WSS RL connector (W/O EPB, 4WD) | 2 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| WSS RL connector (With EPB) | 1 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| WSS RL connector (W/O EPB, 2WD) | 2 (power) | HECU connector (W/O EPB, 2WD) | 9 (power) | Approx. below 1Ω | |
| WSS RL connector (W/O EPB, 4WD) | 1 (power) | HECU connector (W/O EPB, 4WD) | 9 (power) | Approx. below 1Ω | |
| WSS RL connector (With EPB) | 2 (power) | HECU connector (With EPB) | 25 (power) | Approx. below 1Ω | |
| WSS RL connector (W/O EPB, 2WD) | 1 (signal) | HECU connector (W/O EPB, 2WD) | 21 (signal) | Approx. below 1Ω | |
| WSS RL connector (W/O EPB, 4WD) | 2 (signal) | HECU connector (W/O EPB, 4WD) | 21 (signal) | Approx. below 1Ω | |
| WSS RL connector (With EPB) | 1 (signal) | HECU connector (With EPB) | 41 (signal) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
