Monitor DTC Status: Reference
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Threshold Value | Sensor Value | Unit |
|---|---|---|---|
| Charging Voltage | 1 to 16V | 0 | V |
| Charging Current | 0.1 to 4A | 0 | A |
| Charging Power | 1 to 15W | 0 | W |
| Battery Voltage | 9 to 16V | 14.4 | V |
| ACC Input Voltage | 9 to 16V | 14.6 | V |
| ACC | ON: Chargeable/OFF: No charging | ON | - |
| Charging Status LED (yellow) ON/OFF | ON: Charging/OFF: No charging | OFF | - |
| Charging Status LED (yellow) Blinking | ON: Metal material detection or heat generation or position deviation/OFF: Normal | OFF | - |
| Charging Status LED (green) Blinking | ON: Charging complete | OFF | - |
| Frequency Interference with SMK | ON: No charging (door open or SMK in operation)/OFF: Normal (chargeable) | ON | - |
| Charging Status | Charging: Charging normally/OFF: No charging | OFF | - |
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

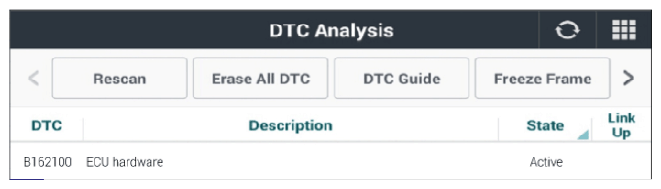

Fig.1 |
Active Fault
- Go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in WPC's connector or was repaired and WPC memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
