Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

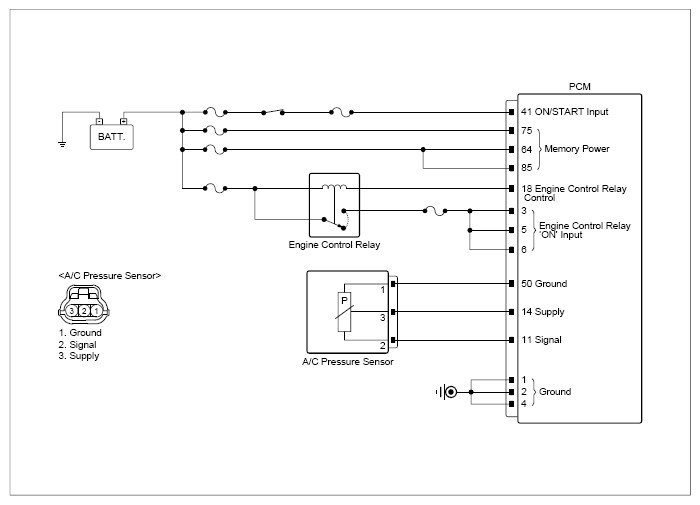

G13506751Courtesy of KIA MOTORS AMERICA, INC.

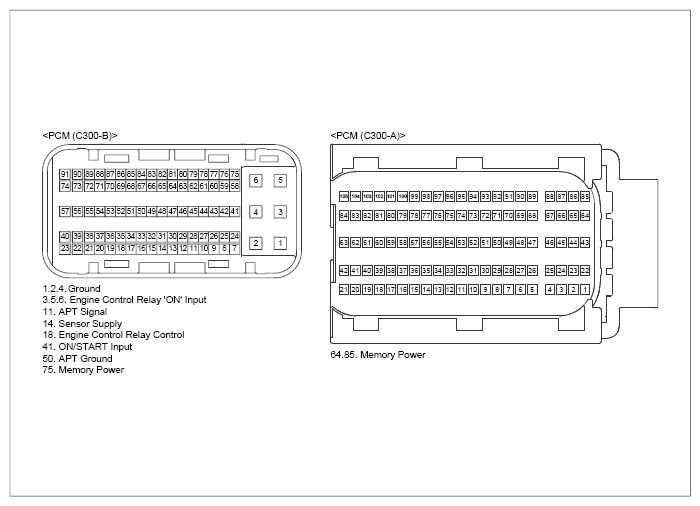

G13506752Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF" and disconnect A/C pressure transducer connector.
  2. Ignition "ON".
 A/C pressure transducer connector 3 (power) Chassis ground - Approx. 5V
  1. Ignition "OFF" and disconnect A/C pressure transducer connector.
  2. Ignition "ON".
 A/C pressure transducer connector 2 (signal) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 A/C pressure transducer connector 2 (Signal) Chassis ground - ∞ (infinity)Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 A/C pressure transducer connector 1 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
