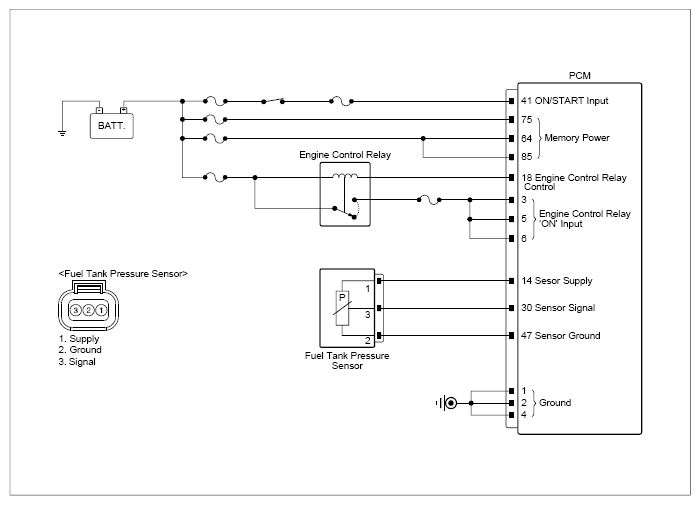

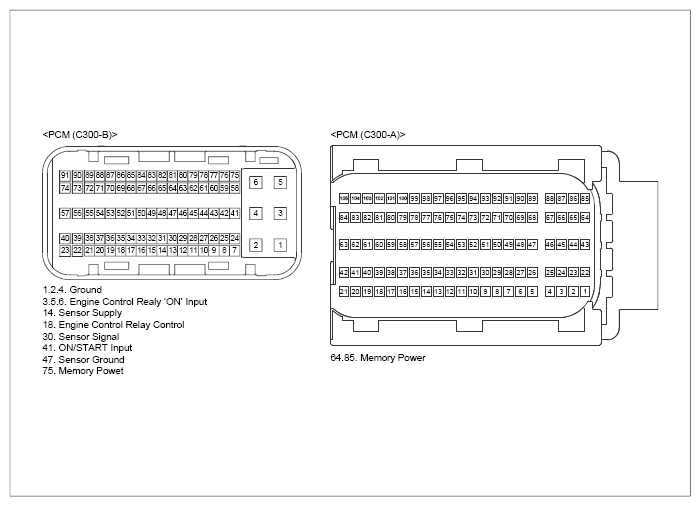

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
FTPS connector | 1 (power) | Chassis ground | - | Approx. 5V |
| FTPS connector | 3 (signal) | Chassis ground | - | Approx. 4.8V | |
| FTPS connector | 2 (ground) | Chassis ground | - | 0V | |
|
FTPS connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| FTPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- If no problems were found with the circuits or connectors, replace the fuel tank pressure sensor and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
