System Inspection: Notes
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Purge Control Valve | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|

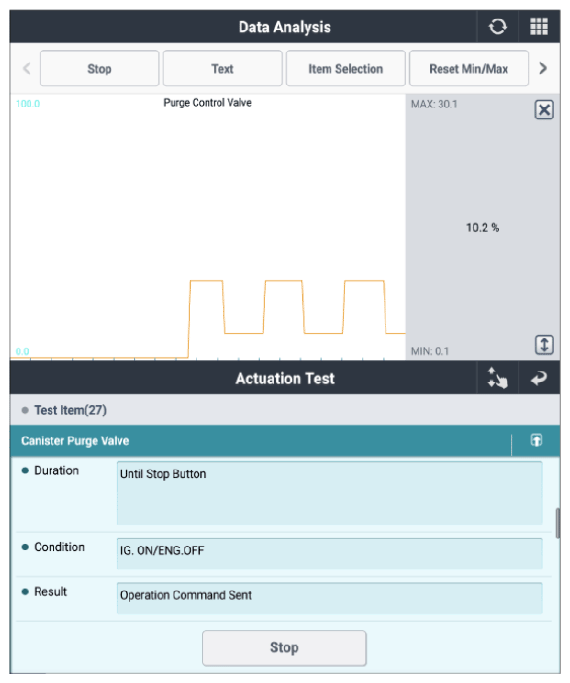

Fig.1 |
Good
- Go to "Canister Close Valve Inspection" procedure.
No Good
- If no problems were found with the circuits or connectors, replace the PCSV and go to "Verification Of Repair " procedure.
| Canister Close Valve Inspection | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|

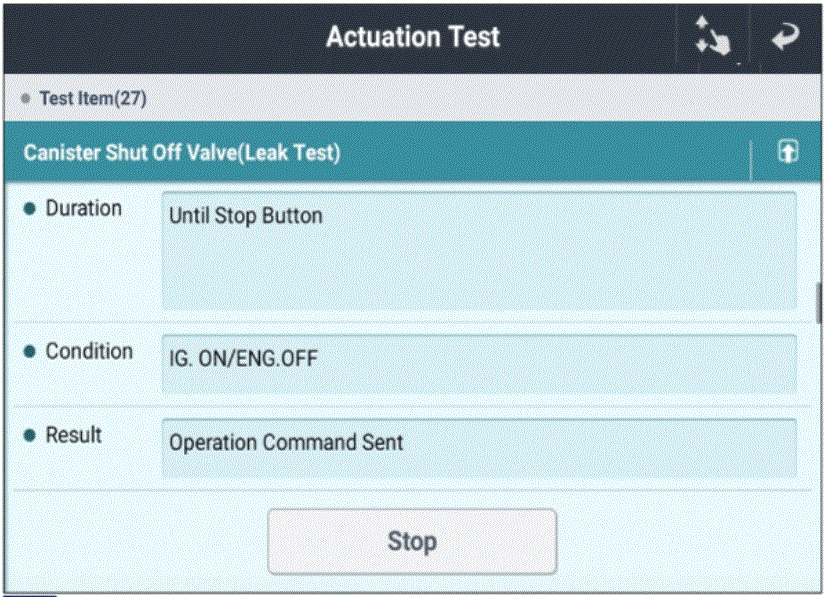

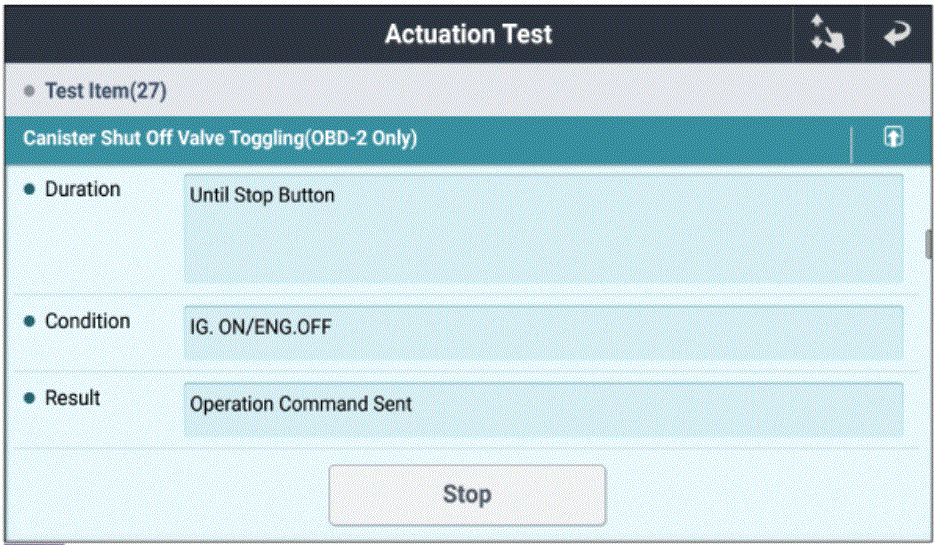

Fig.1 to 2 |
Good
- Go to "Visual Inspection " procedure.
No Good
- If no problems were found with the circuits or connectors, replace the CCV and go to "Verification Of Repair " procedure.
