Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- EPS type recognition.
- Ignition "ON".
|
- Connect KDS/GDS to "Data Link Connector (DLC)".

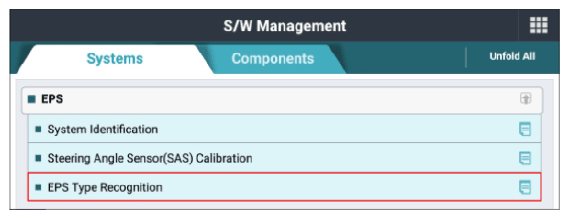

- Perform

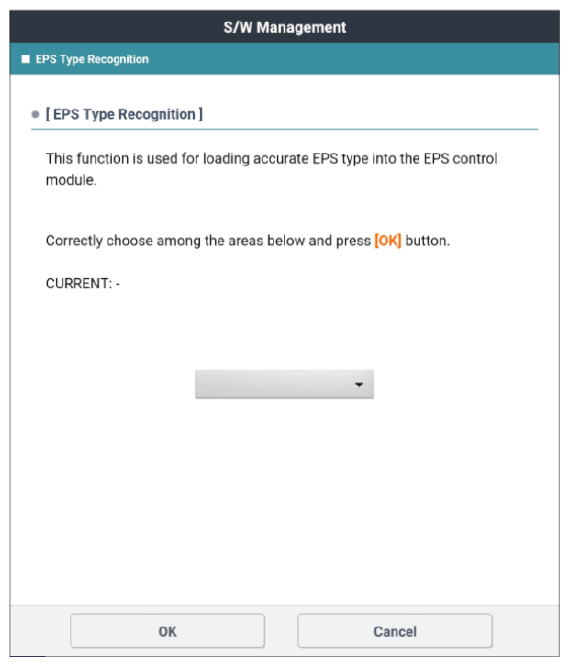

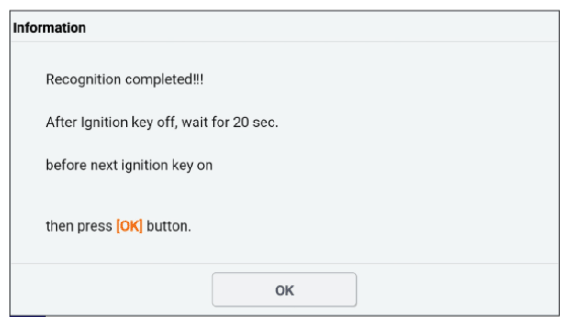

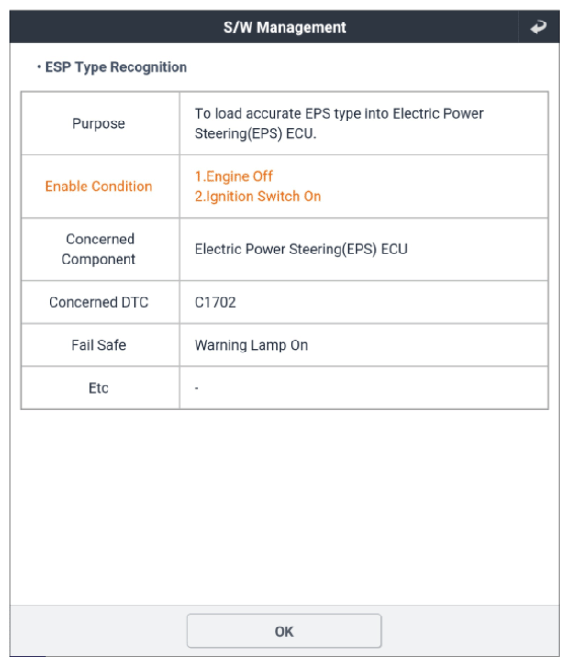

"EPS Type Recognition" in "Vehicle S/W management" with KDS/GDS.
|
Fig.1 to 4 |

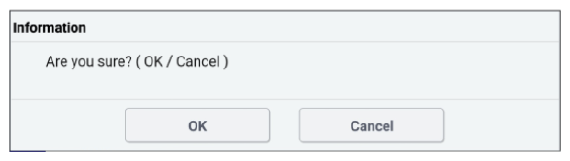

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to "Data Link Connector (DLC)".
- Perform

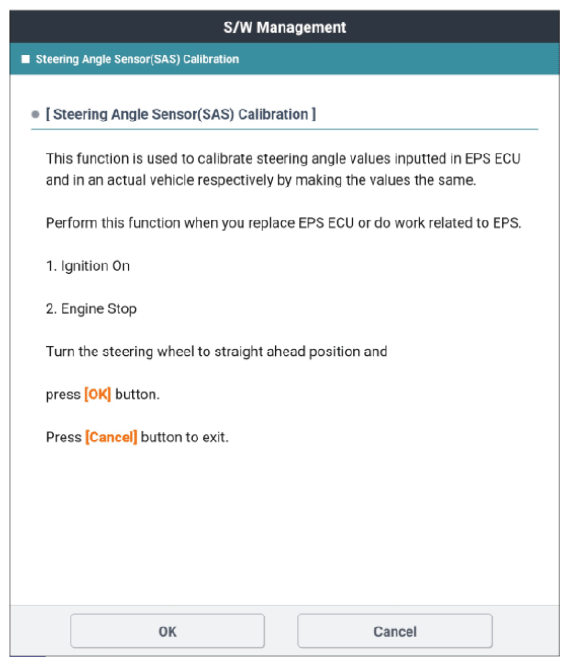

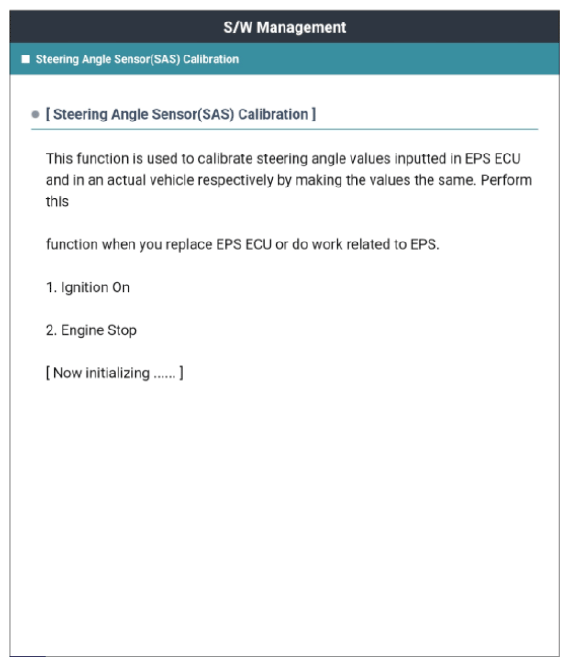

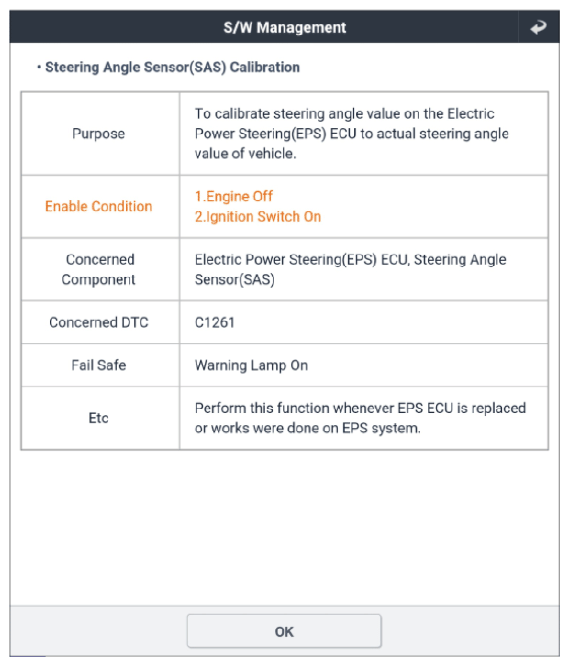

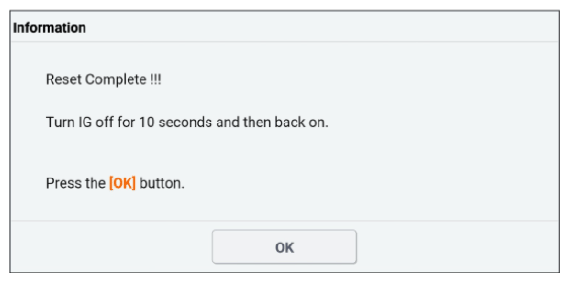

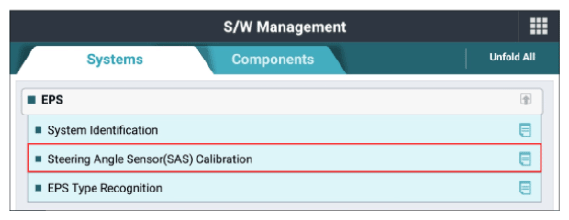

"Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS/GDS.
|
Fig.1 to 6 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
