Monitor DTC Status

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to "Data Link Connector (DLC)". Ignition "ON". Select correct vehicle model, year and engine type with KDS/GDS. Select systems related to CAN. (Fig.1) Select "Fault Code Searching". (Fig.2)	Fig.1 to 2

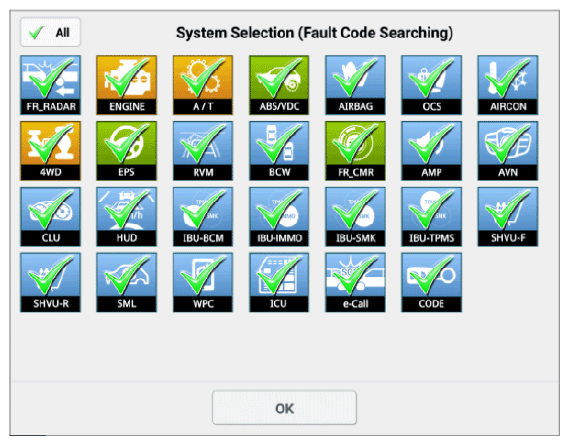

G13494671

Courtesy of KIA MOTORS AMERICA, INC.

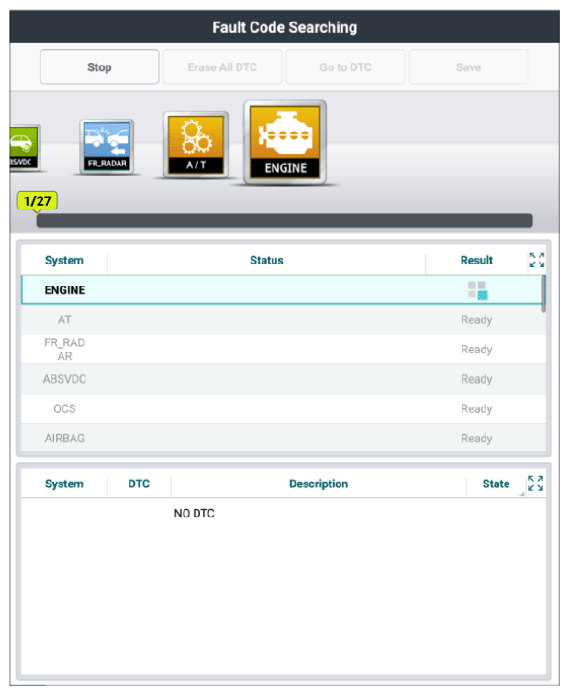

G13494672

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, go to "WIRING INSPECTION " procedure.
