Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

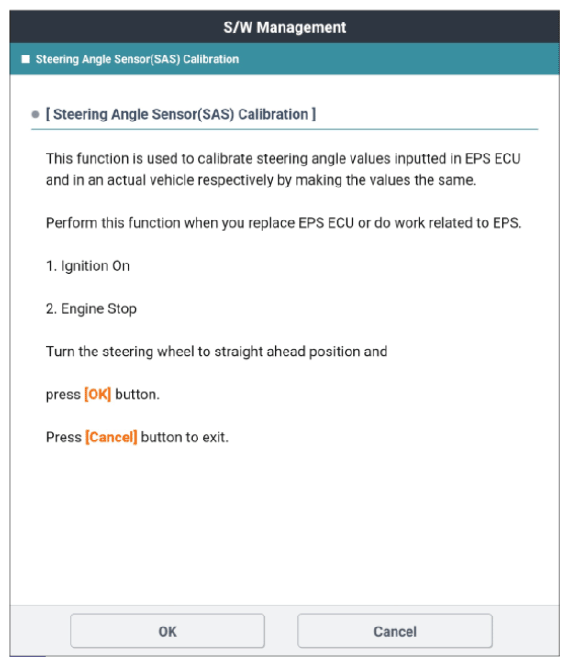

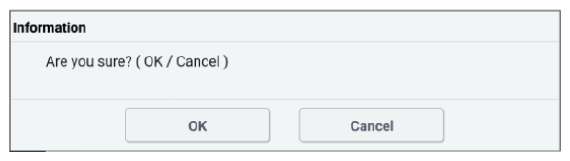

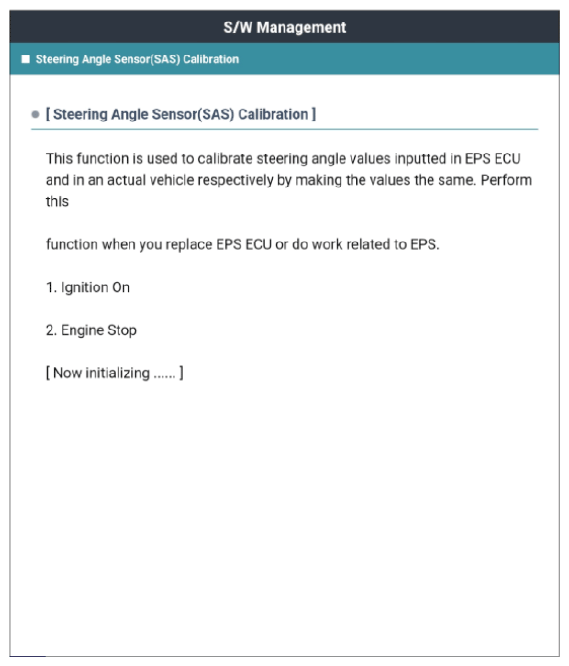

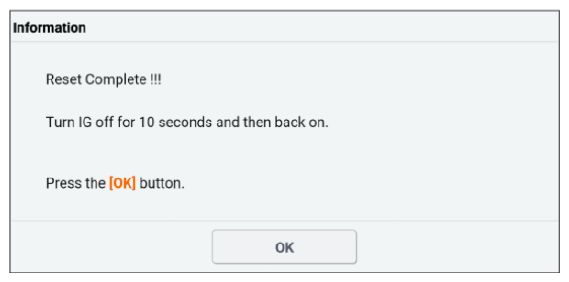

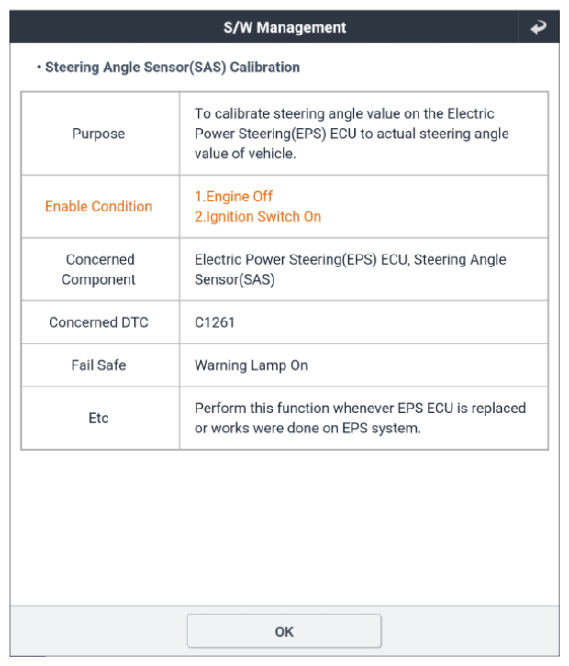

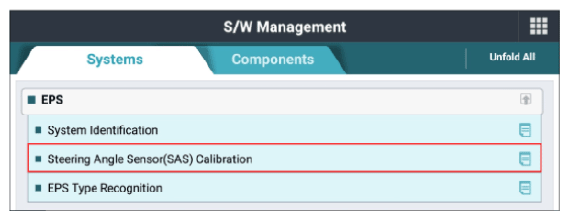

Fig.1 to 6 |
Good
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "COMPONENT INSPECTION " procedure.
