Glass Adjustment

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check the glass run channel for damage or deterioration, and replace them if necessary.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

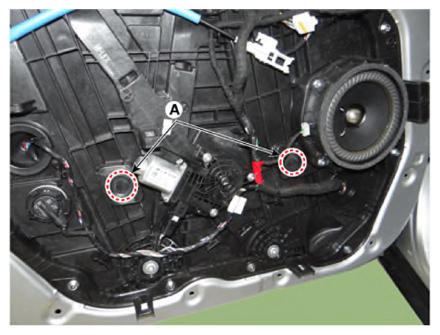

Separate the mounting plug hole (A) from the front door module.

Courtesy of KIA MOTORS AMERICA, INC.

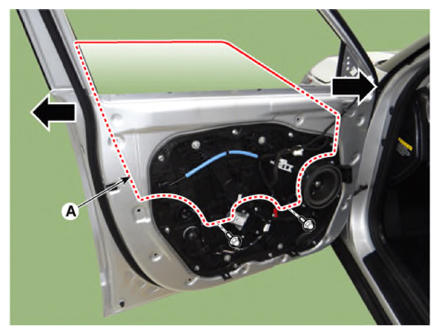

Carefully move the front door window glass (A) until the glass mounting bolts are visible, then loosen them.

Courtesy of KIA MOTORS AMERICA, INC.
Check that the glass moves smoothly.
