Door Position Adjustment
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Information

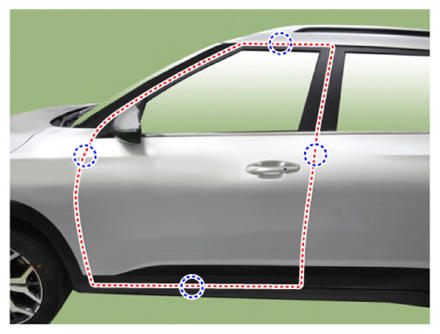

After installing the door, check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom, door edges and the body. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.
- Check that the door and body edges are parallel.
- Place the vehicle on a firm, level surface when adjusting the doors.

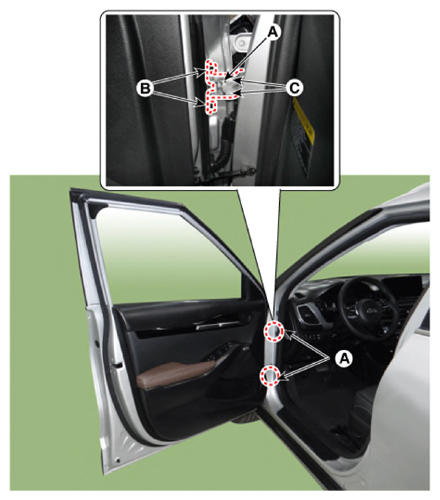

- Adjust at the hinges (A):
- Loosen the door mounting bolts slightly, and move the door in and out until it aligns flush with the body.
- Loosen the hinge mounting bolts slightly, and move the door backward and forward, or up and down as necessary to equalize the gaps.
- Place a shop towel on the jack to prevent damage to the door when adjusting the door.
Tightening torque:
(B): 21.6 - 26.5 N.m (2.2 - 2.7 Kgf.m, 15.9 - 19.5 lb.ft)
(C): 23.5 - 31.4 N.m (2.4 - 3.2 Kgf.m, 17.4 - 23.1 lb.ft)
- Grease the pivot portions of the hinges indicated.
- Check for water leaks.
