Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Take care not to bend or scratch the trim and panels.

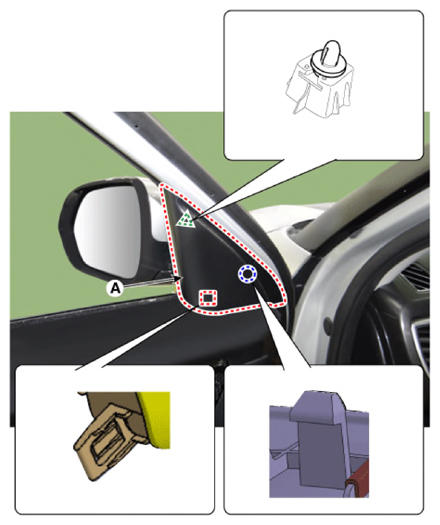

Separate the front door quadrant inner cover (A) by using the remover.

Courtesy of KIA MOTORS AMERICA, INC.

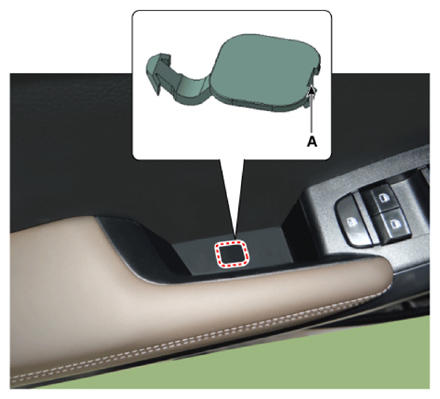

Using a flat-tip or remover, remove the front door pull handle cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

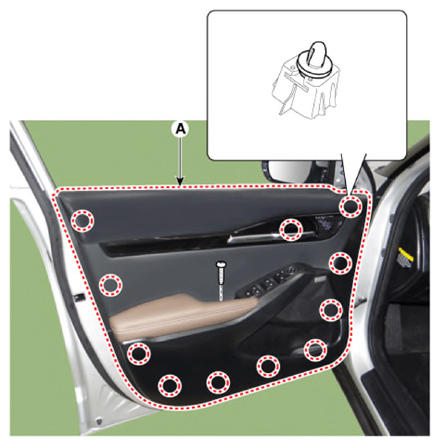

Loosen the mounting screw and remove the front door trim (A).
Tightening torque:

4.9 - 5.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft, 34.7 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

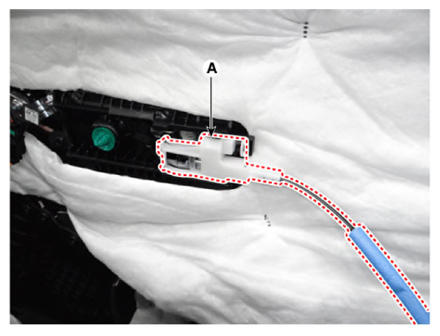

Remove the front door inside handle cage (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Cage must be assembled until it makes clicks sound.

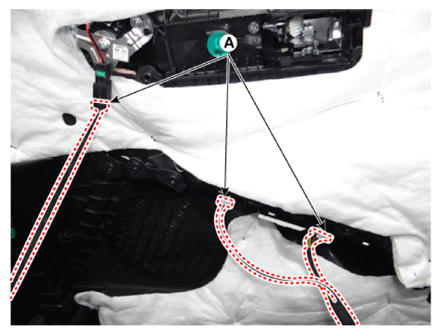

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
