Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Front door side weatherstrip]

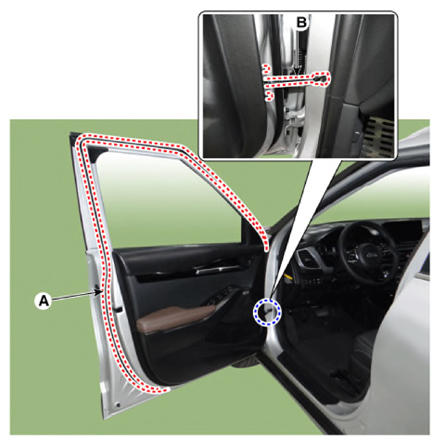

Loosen the front door checker (B) mounting bolt.
Tightening torque:

16.7 - 21.6 N.m (1.7 - 2.2 kgf-m, 12.3 - 15.9 lb.ft)
Detach the clips, and then remove the front door side weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips.

[Front door body side weatherstrip]

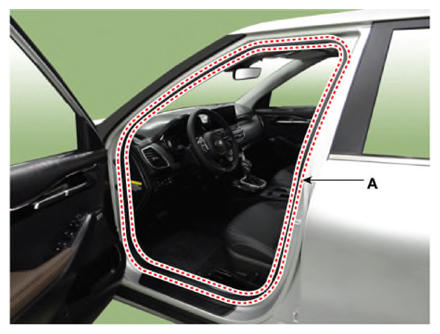

Detach the clips, then remove the front door body side weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
