Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Take care not to bend or scratch the trim and panels.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

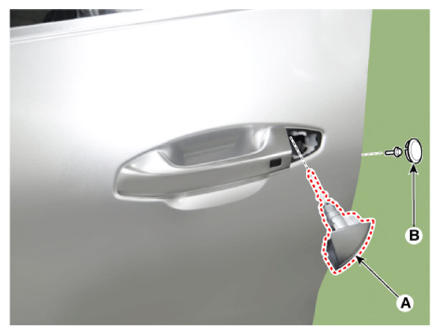

Remove the hole plug (B).
After loosening the mounting bolt, then remove the front door outside handle cover (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf-m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

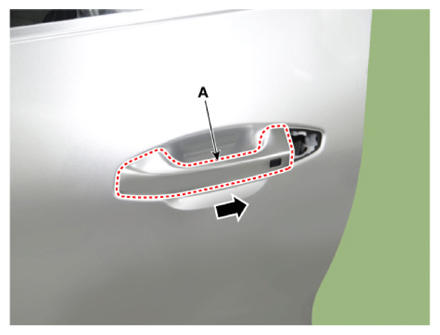

Remove the front door outside handle (A) by sliding it rearward.

Courtesy of KIA MOTORS AMERICA, INC.

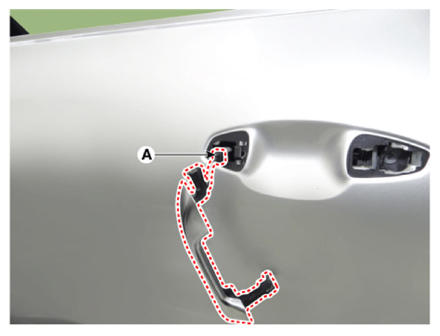

Disconnect the front door outside handle connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.

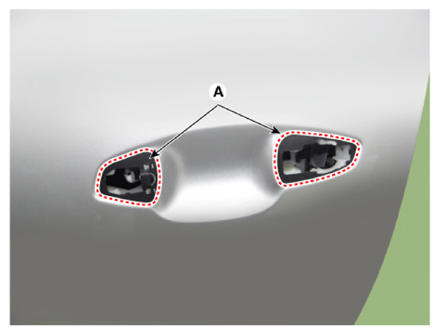

- Be sure to install the outside handle pad (A) between the outside handle and the door panel.
Courtesy of KIA MOTORS AMERICA, INC.
