Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

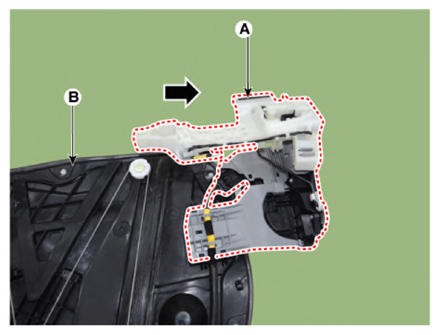

Remove the front door latch (A) from the module (B) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

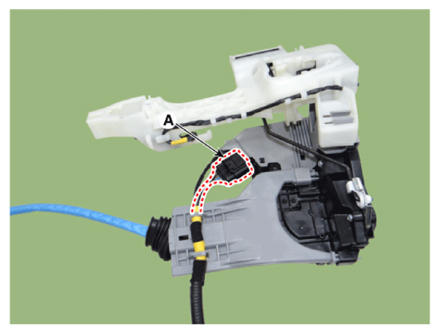

Disconnect the front door latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

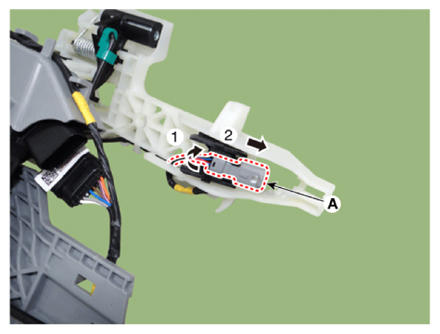

To remove the front door outside handle base connector (A) after turning it counter clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

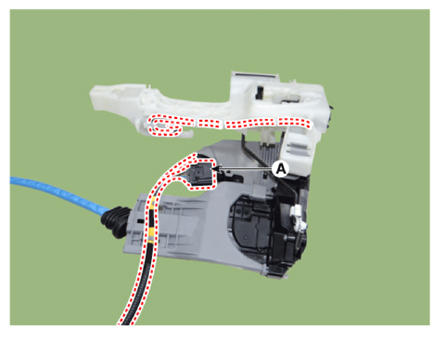

Remove the front door outside handle connector wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.

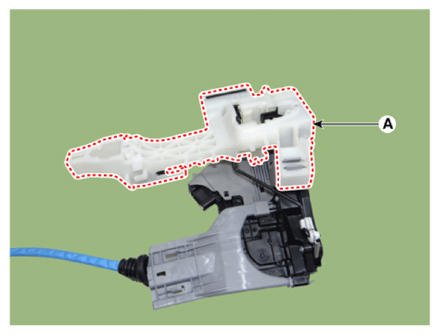

Remove the front door outside handle base bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

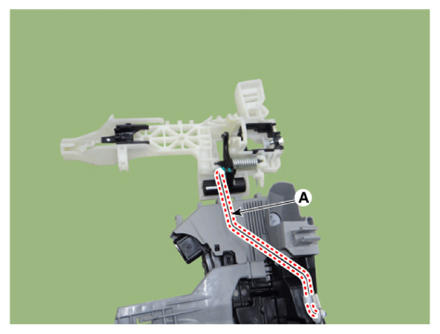

Loosen the front door latch load (A) and remove the front door outside handle base.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
