Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

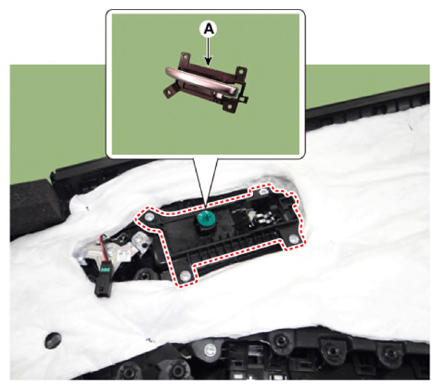

  2. Loosen the mounting screws and remove the front door inside handle (A).
    G13481903Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reinstall in reverse order of removal procedure.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips (or pin-type retainers).
