Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

Pull down the front door window glass to the lowest level by pressing the power window glass switch.
Remove the outside rear view mirror.
(Refer to Mirror - "OUTSIDE REAR VIEW MIRROR ")

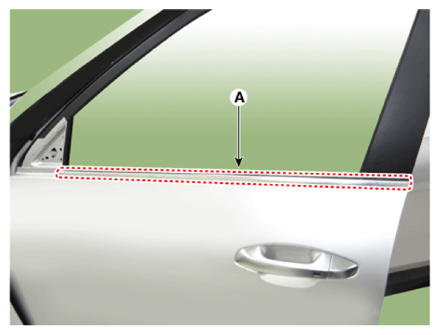

Remove the front door belt outside weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips.
