Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

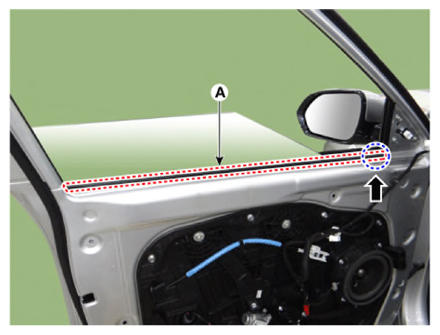

  2. Remove the front door belt inside weatherstrip (A).
    G13481927Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reinstall in reverse order of removal procedure.

    Information

    • When installing, install it by first contacting the inside part (base point of assembly) of arrow to door frame.
    • Replace any damaged clips (or pin-type retainers).
