Tie Rod End

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

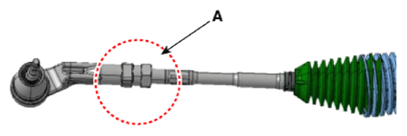

Remove the tie rod end after loosening the nut (A).
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Before removing the tie rod end, take the measurement or mark with paint the length of the thread.
Replace the tie rod end.
Install in the reverse order of removal.
Check the alignment.
(Refer to "FRONT WHEEL ALIGNMENT ").
