SAS Calibration procedures

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
  2. Turn the self - diagnosis device after ignition is ON.
  3. Turn the steering wheel to straight ahead position.
  4. After Selecting the "vehicle model" and "system", select the "SAS Calibration" on diagnostic tool vehicle selection screen.

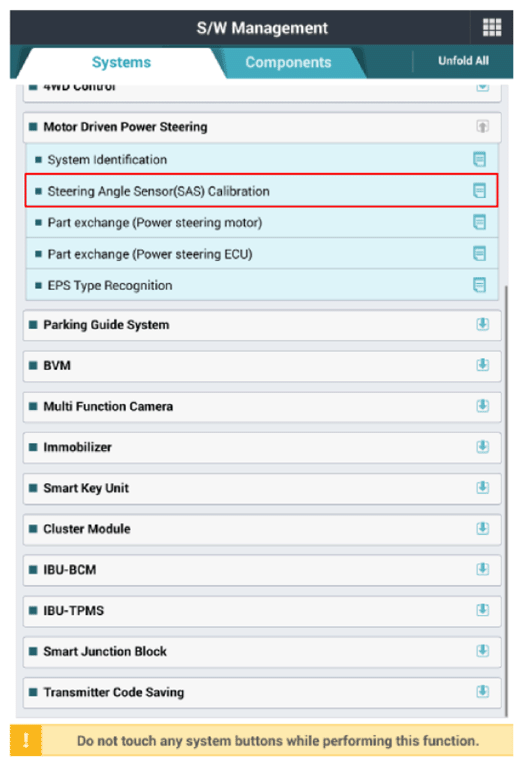

    G13481474Courtesy of KIA MOTORS AMERICA, INC.

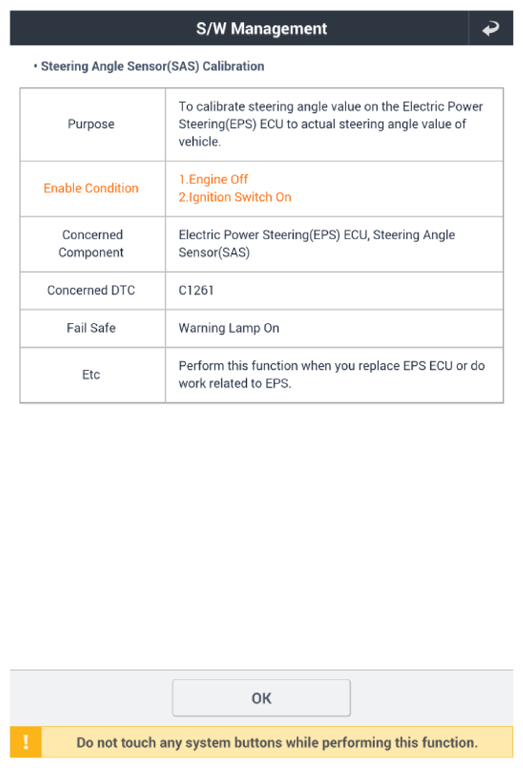

    G13481475Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the DTC.
  6. Turn off the ignition and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.
