Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake And Exhaust System - 1.6L >> Muffler And Catalytic Converter >> Components And Components Location >> Components

Components And Components Location: Components

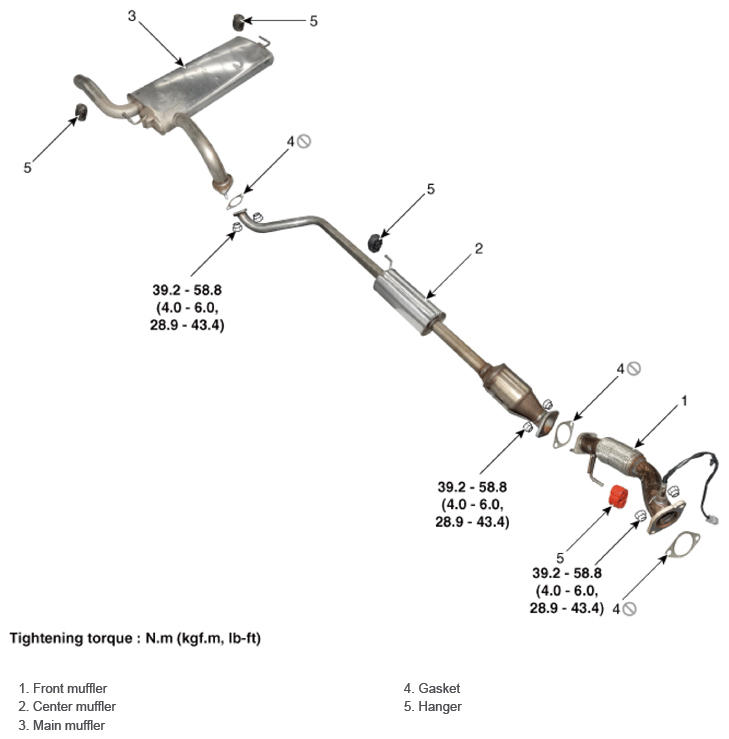

Fig 1: Muffler And Catalytic Converter Components With Torque Specification

G12596341

Courtesy of HYUNDAI MOTOR AMERICA
