Components And Components Location: Components

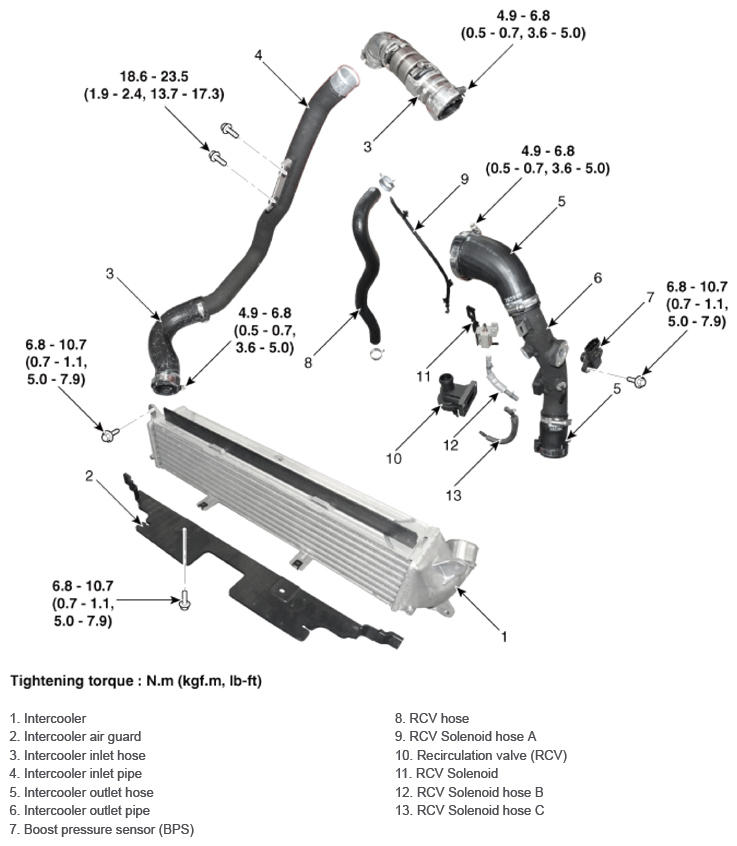

Fig 1: Exploded View Of Intercooler Components With Torque Specification

G12596326

Courtesy of HYUNDAI MOTOR AMERICA
