Components And Components Location: Components

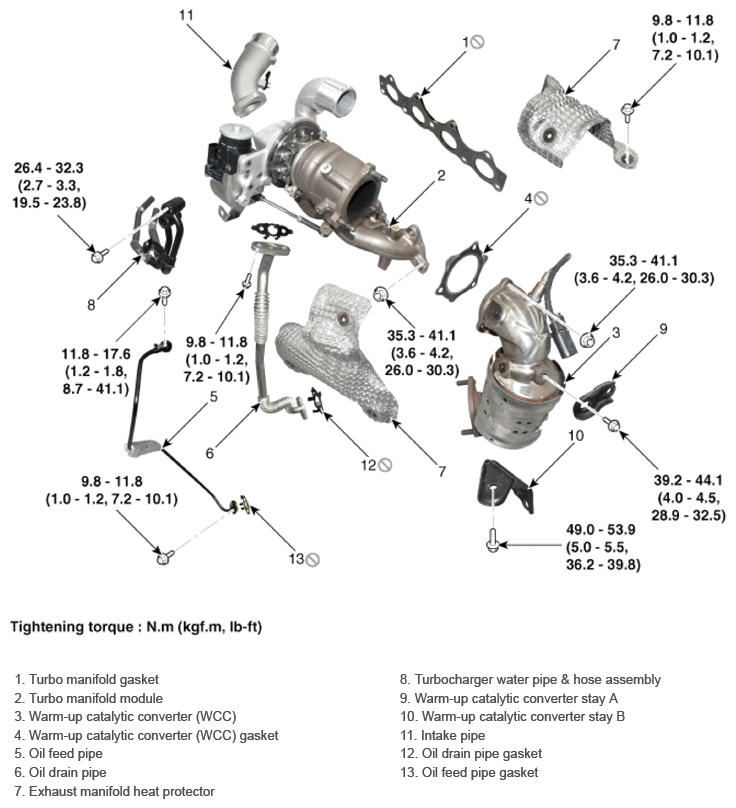

Fig 1: Exhaust Manifold And Catalytic Converter Components With Torque Specification

G12596310

Courtesy of HYUNDAI MOTOR AMERICA
