Air Cleaner Assembly

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

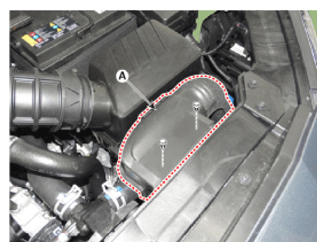

  3. Remove the air duct (A).
    G12596294Courtesy of HYUNDAI MOTOR AMERICA

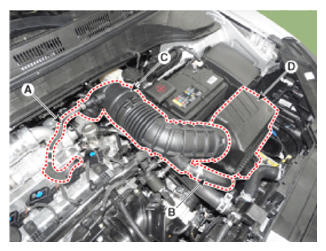

  4. Remove the air cleaner assembly.
    1. Disconnect the breather hose (A).
    2. Disconnect the RCV hose & pipe (B).
    3. Air cleaner intake hose (C) and then air cleaner assembly (D).

      Tightening torque

      Hose clamp bolt:

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts:

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

      G12596295Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
