Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).

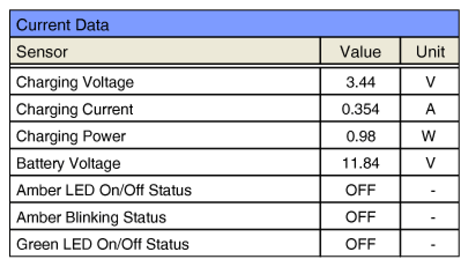

- Monitor parameters in "Current Data" with GDS
- Is the value within specification?
YES
- This can be an intermittent fault caused by poor contact in the sensor's and/or control module's connector. Or, control module's memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage.
- Repair or replace the relevant component(s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
- Replace the WPC with an usable one and check for proper operation. If it works properly, put the component in place. Then, go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Replace the WPC with an usable one and check for proper operation. If it works properly, put the component in place. Then, go to "VERIFICATION OF VEHICLE REPAIR ".
