Repair Procedures: Replacement
- Remove the plug hole (A).
- Remove the cap and the nuts, and then remove the wiper arm (A).
Tightening torque:
22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)
- Using a screwdriver or remover, remove the cowl top side cover (A).

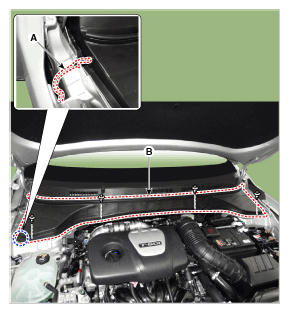

- Disconnect the washer nozzle (A).
- Detach the clips, then remove the cowl top cover (B).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
