Repair Procedures: Removal

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.

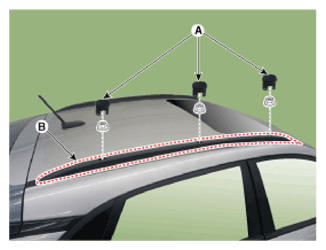

  1. Remove the roof rack side cap (A).
  2. Loosen the nuts and remove the roof rack assembly (B).
    G12603025Courtesy of HYUNDAI MOTOR AMERICA
