Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

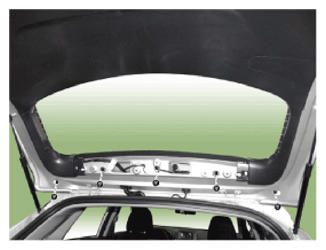

Remove the tail gate upper trim.
(Refer to LIFTGATE TRIM )

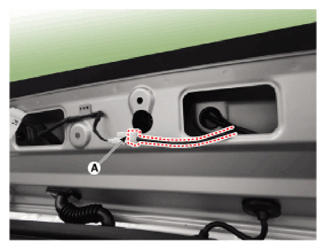

Disconnect the high mounted stop lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

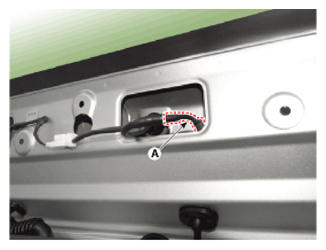

Disconnect the rear washer nozzle (A).

Courtesy of HYUNDAI MOTOR AMERICA

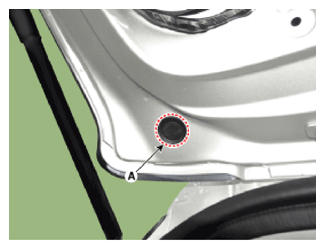

Remove the rear spoiler cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

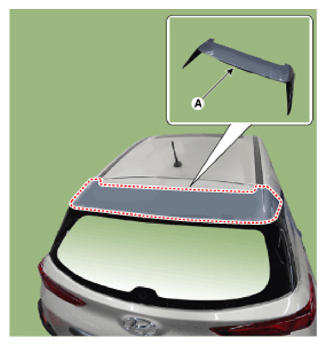

After loosening the mounting nuts, remove the rear spoiler (A).
Tightening torque:

5.9 - 6.4 N.m (0.6 - 0.65 kgf.m, 4.3 - 4.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

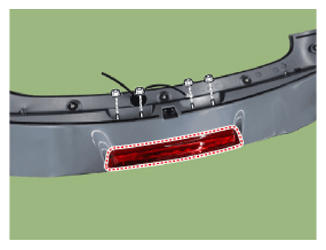

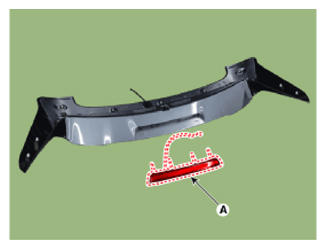

After loosening the mounting screws, remove the high mounted stop lamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
