Description And Operation: Description: Notes
HUD system displays various information on the combiner which minimizes the driver's eye movement to enhance safety and convenience.

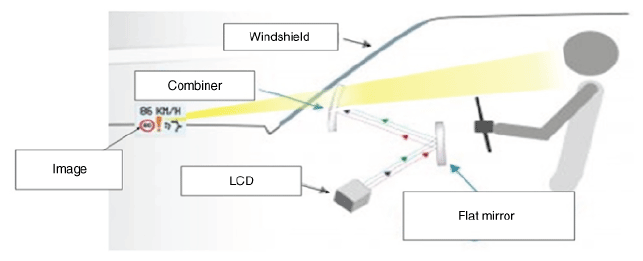

The Head Up Display reflects the TFT LCD images to flat mirror & combiner then displays them 2.0m ahead from the driver's eye.
Information provided by HUD;
(1) Vehicle speed
Integrated (DIS) information TBT (Turn by Turn) navigation information, road signage
Safety warning lamp: SCC, LKA, Blind Spot Warning
(2) Integrated (DIS) information TBT (Turn by Turn) navigation information, road signage
(3) Safety warning lamp: SCC, LKA, Blind Spot Warning
