Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl side trim.

   (Refer to Interior Trim - "COWL SIDE TRIM ")

2. Remove the glover box.

   (Refer to Crash Pad - "GLOVE BOX ")

3. Remove the crash pad garnish assembly [RH]

   (Refer to Crash Pad - "CRASH PAD GARNISH ASSEMBLY [RH] ")

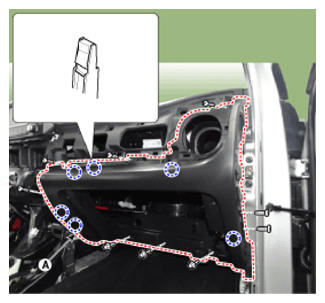

4. After loosening the mounting screws, nut and bolts, remove the glove box housing cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

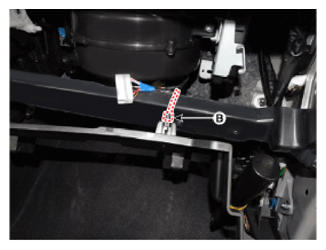

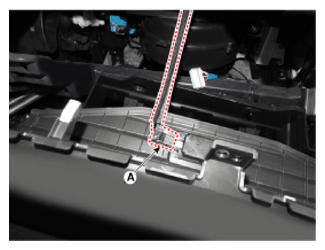

5. Disconnect the glove box lamp connector (A) and the lamp switch connector (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

6. To install, reverse removal procedure.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips (or pin-type retainers).
