Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the cluster fascia panel.
(Refer to Cluster Pad - "CENTER FASCIA PANEL ")

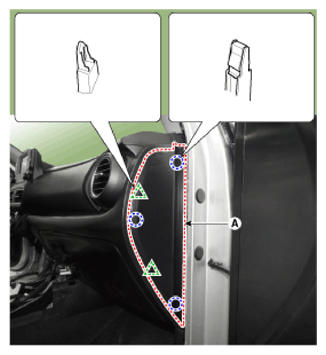

- Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
- After loosening the mounting screws, remove the crash pad garnish assembly [RH] (A).

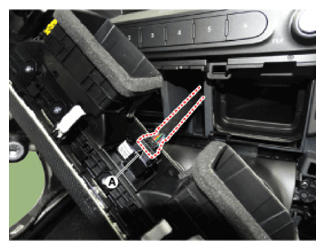

- Disconnect the hazard switch connector (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
